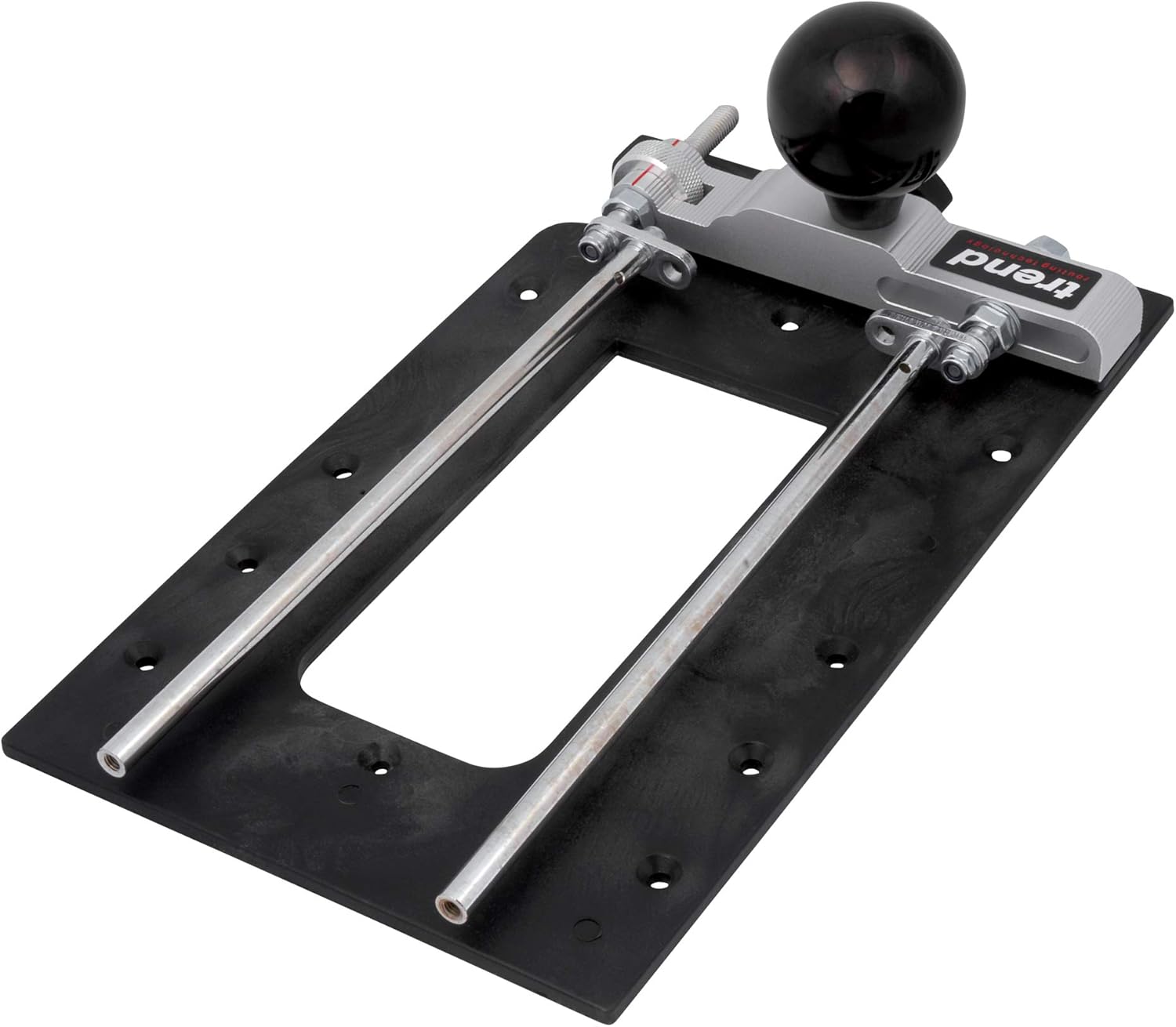

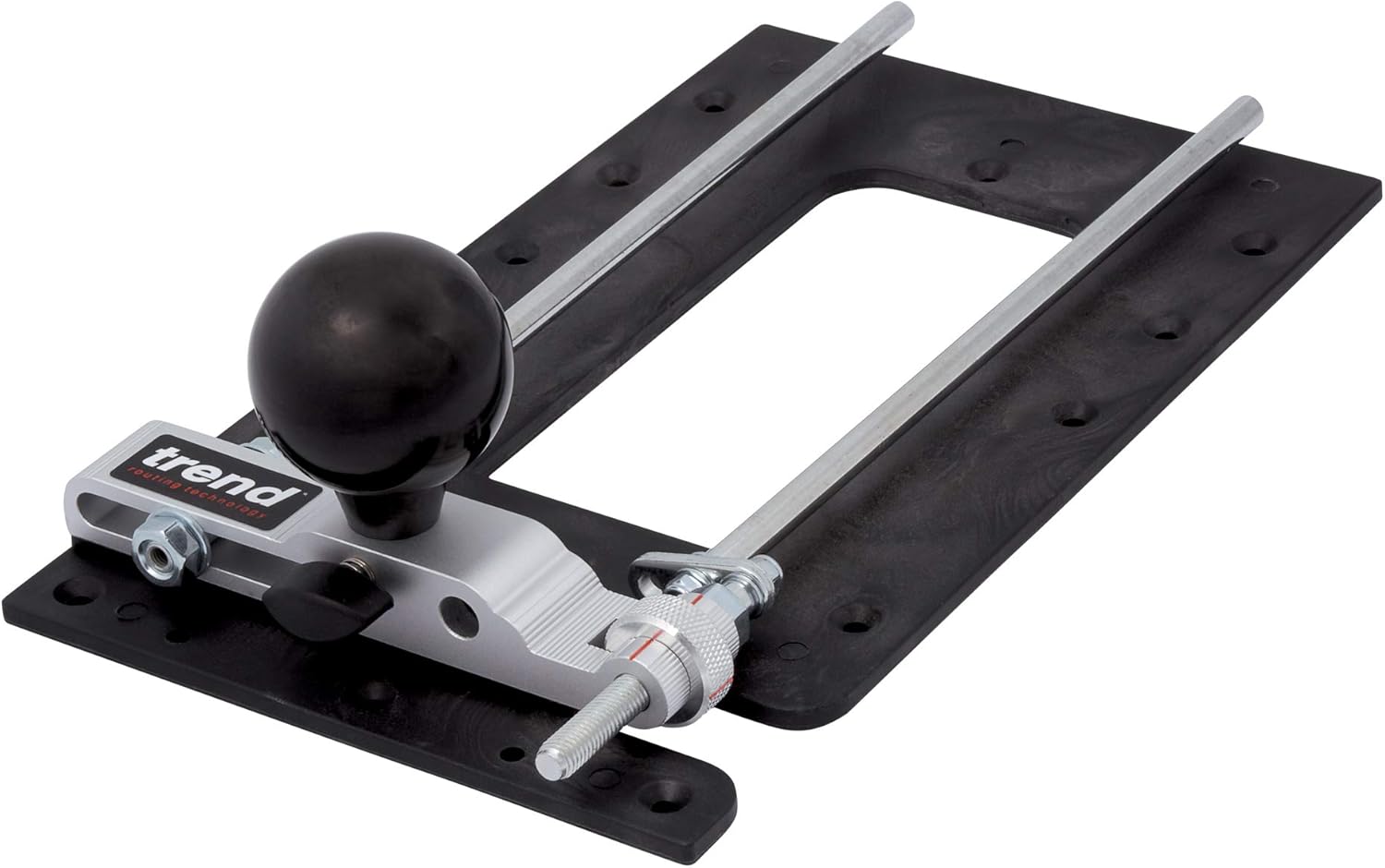

Trend UCRB Combination Router Base

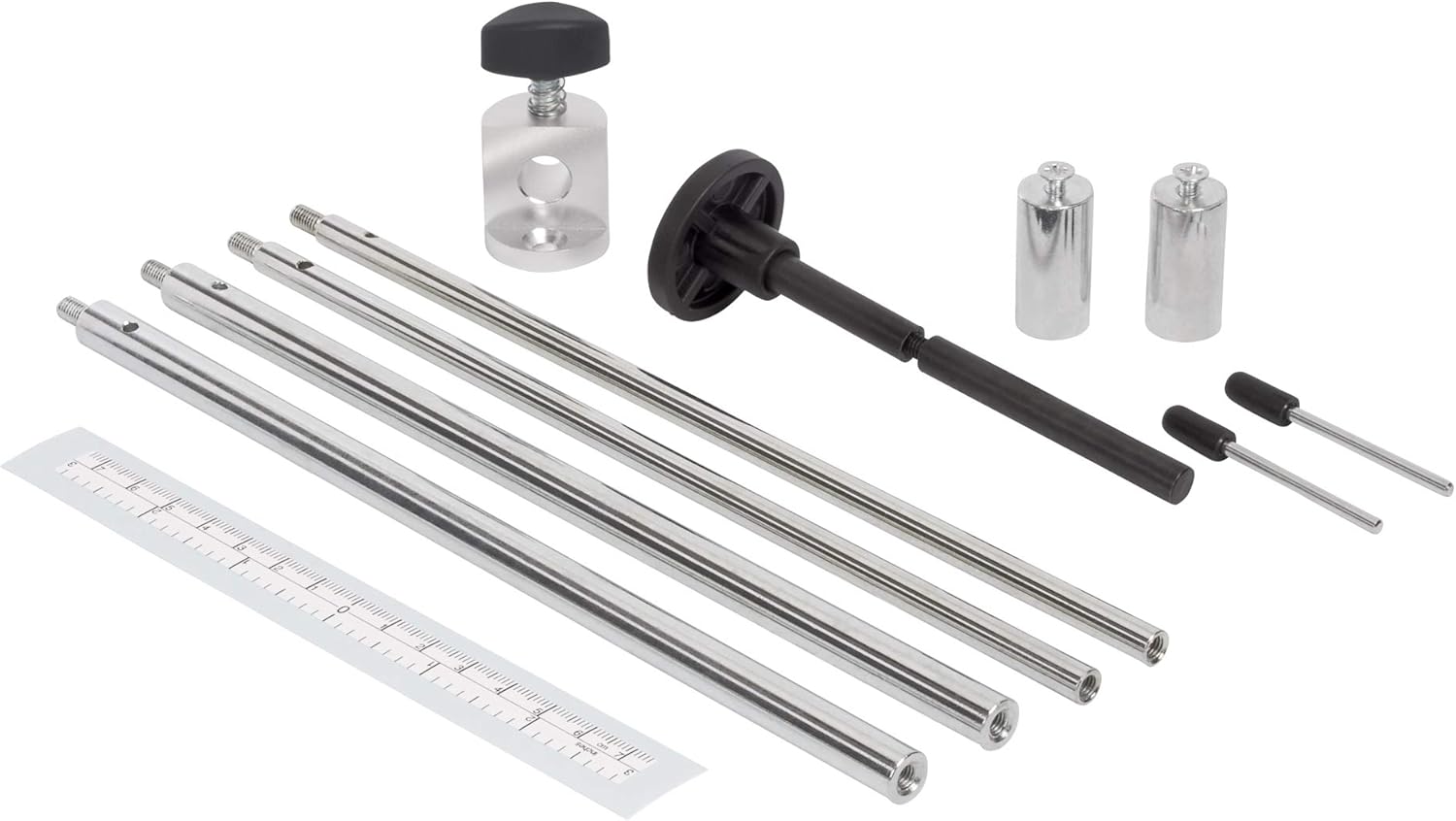

The Combination Router Base is a retro fit, quick change, multi-functional router base designed to: Increase the overall versatility of the router. Improve the quality of finish of every routing pass. Reduce the possibility of error. Increase stability during routing. Increase the level of precision achieved. Save set up time between tasks. Save space on storing hand made jigs. The CRB has seven functions – an offset baseplate, router compass from 3/4 inch to 8 3/4 inch radius, adjustable trenching with a clamp guide with 1 1/2 inch micro adjustment, adjustable anti-tilt support, adjustable mortising of timber from 2 inch to 7 7/8 inch width, adjustable false panel groove copier and also enhances the Varijig frame system as an anti-tilt device when used with routers that can accept Euro style guide bushes (a special guide bush ref GB40/B is required). The CRB will fit most routers with two 5/16 inch (8mm), 10mm and 12mm fence rod holes at centers of 3 1/16″ to 5 1/8″. An accessory quick fit edge trimming base is available for trimming lipping up to 5/16 inch wide and 1/4 inch projection, ref. CRB/TB. Larger circles can be accommodated by using accessory extension rods ref. N/COMPASS/AEX to increase radius by 22 inches. Design Reg. No. 3003693.
