Topping D3 TP-D3 Decoder USB/Optical/Coaxial/BNC DAC Black

Overall parameters:
Analog audio inputs: RCA * 1
Digital audio input interface USB + Fiber + RCA + BNC Coaxial Coaxial
Block 6.35mm headphone amp output interface
Sample median 16-24bit
Sampling frequency 32-192kHz (USB up to 96kHz)
Single Weight Approximately 588g
Dimensions (including protruding parts) 20CM * 5CM long deep * 11.5CM High

Amp parameters:
Range of 16-600Ω load impedance
Maximum output power 165mW (RL = 32Ω, THD + N = 1%)
110mW (RL = 300Ω, THD + N = 1%)
70mW (RL = 600Ω, THD + N = 1%)
Minimum Distortion 0.0007% (RL = 32Ω, Pout = 50mW)
Typical Distortion (@ 1kHz) 0.0032% (RL = 32Ω, Pout = 50mW)
4-32kHz frequency response range
Frequency response flatness 0.04dB (20-20kHz)
Input Sensitivity 2.3Vrms
Noise floor Gain (@ 1kHz) 9dB
110dB SNR
19.2V output voltage swing

Decoder parameters:
Line Out Output Level 2.38Vrms @ 1kHz
Minimum distortion 0.00050% (sampling frequency 96kHz)
Typical Distortion (@ 1kHz) 0.00082% (sampling frequency 96kHz)
Dynamic range 117dB (sampling frequency 96kHz)
Frequency response flatness 0.04dB (20-20kHz)
Background noise 114dB SNR
Static power consumption of about 3.3W
Maximum sampling rate 96kHz USB interface
Optical fiber, coaxial maximum sampling rate 192kHz

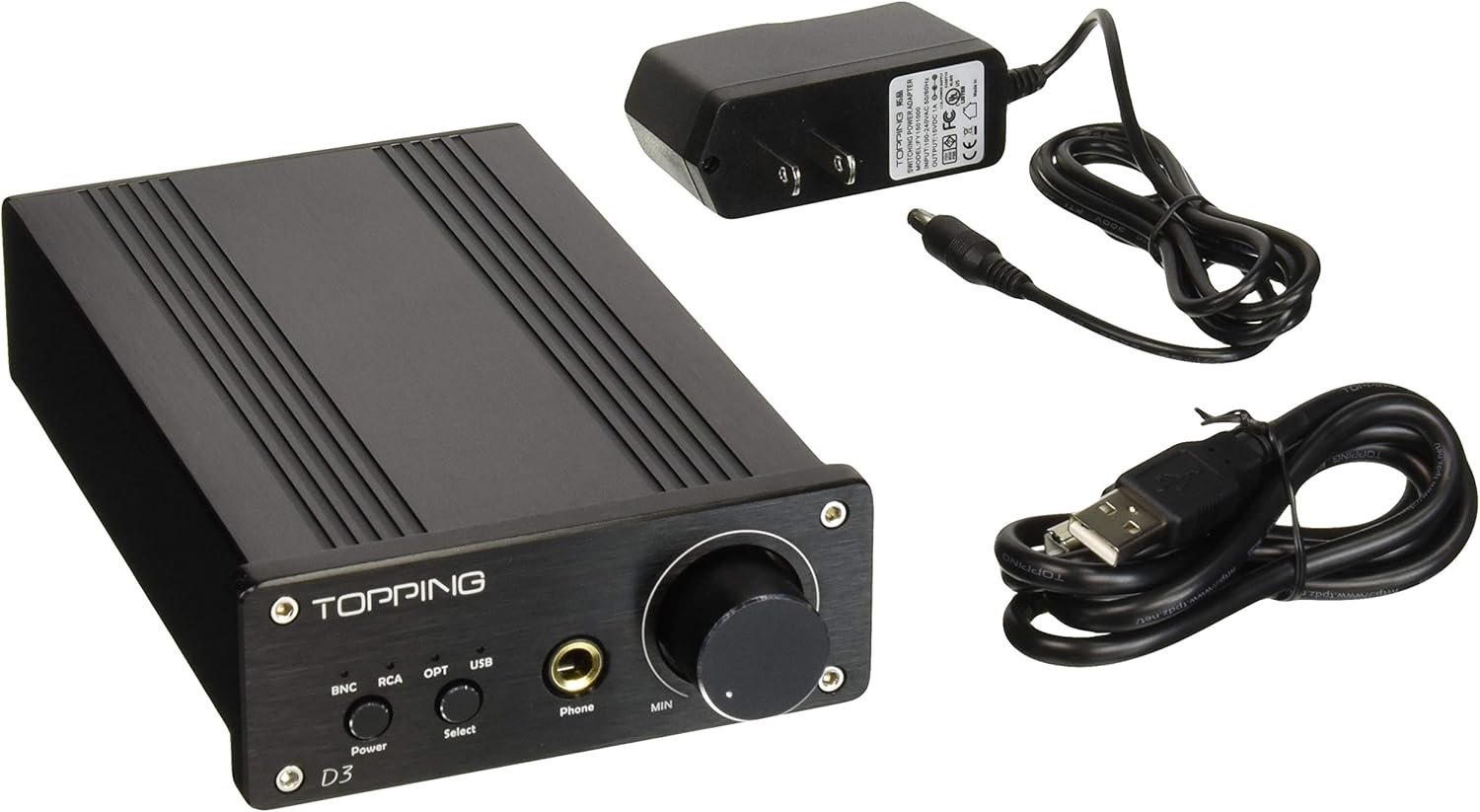

Packages:
Topping tp-d3 unit Silver
Chinese and English manual
Power supply
Usb cable
6.35 to 3.5 plug one
