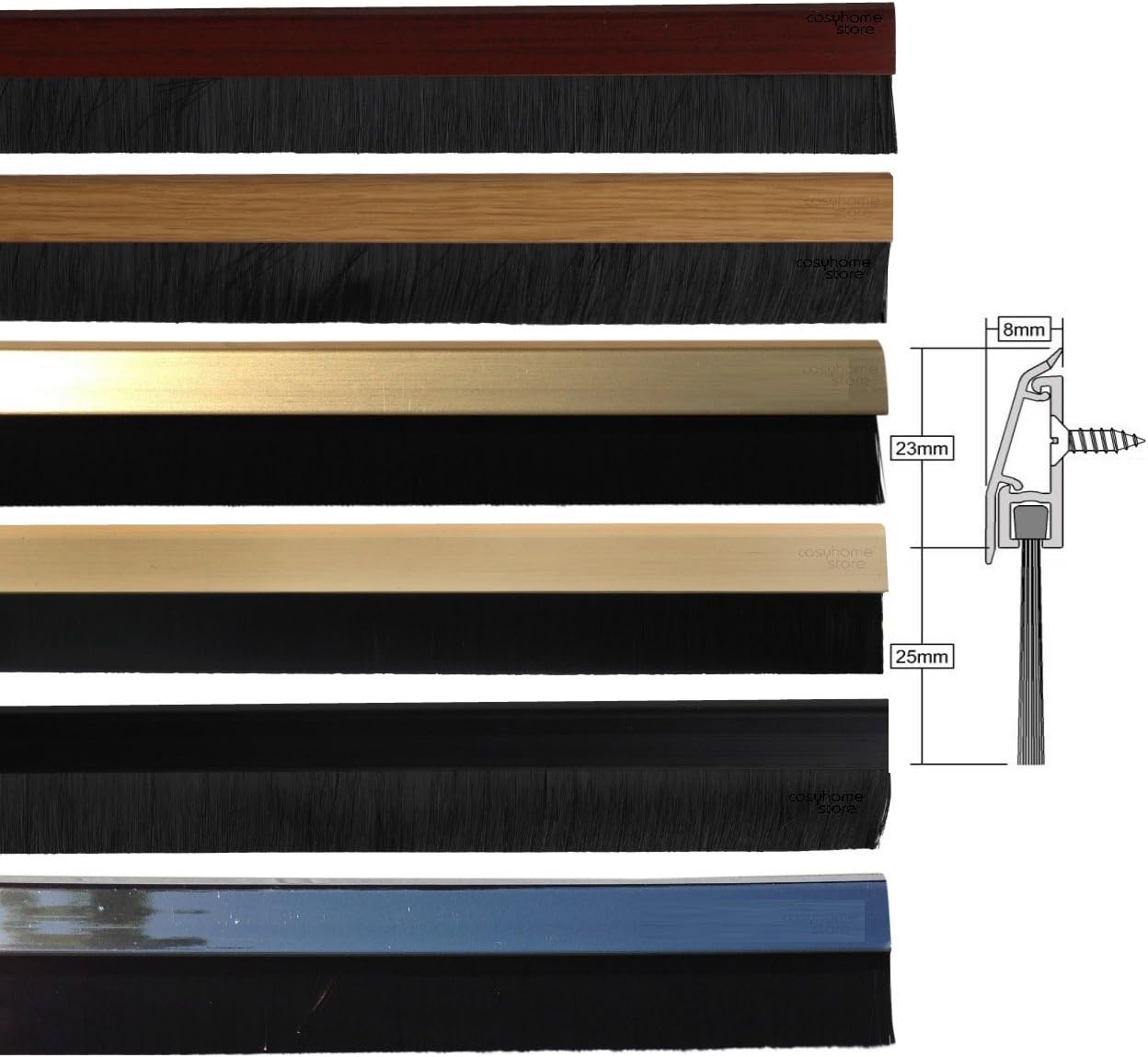

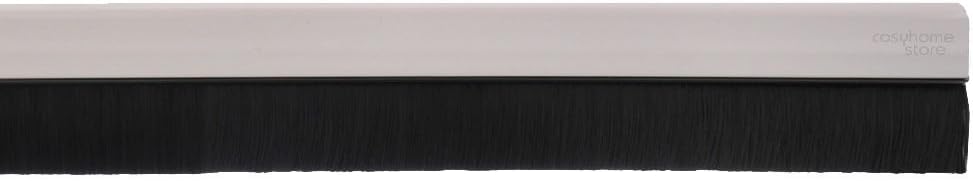

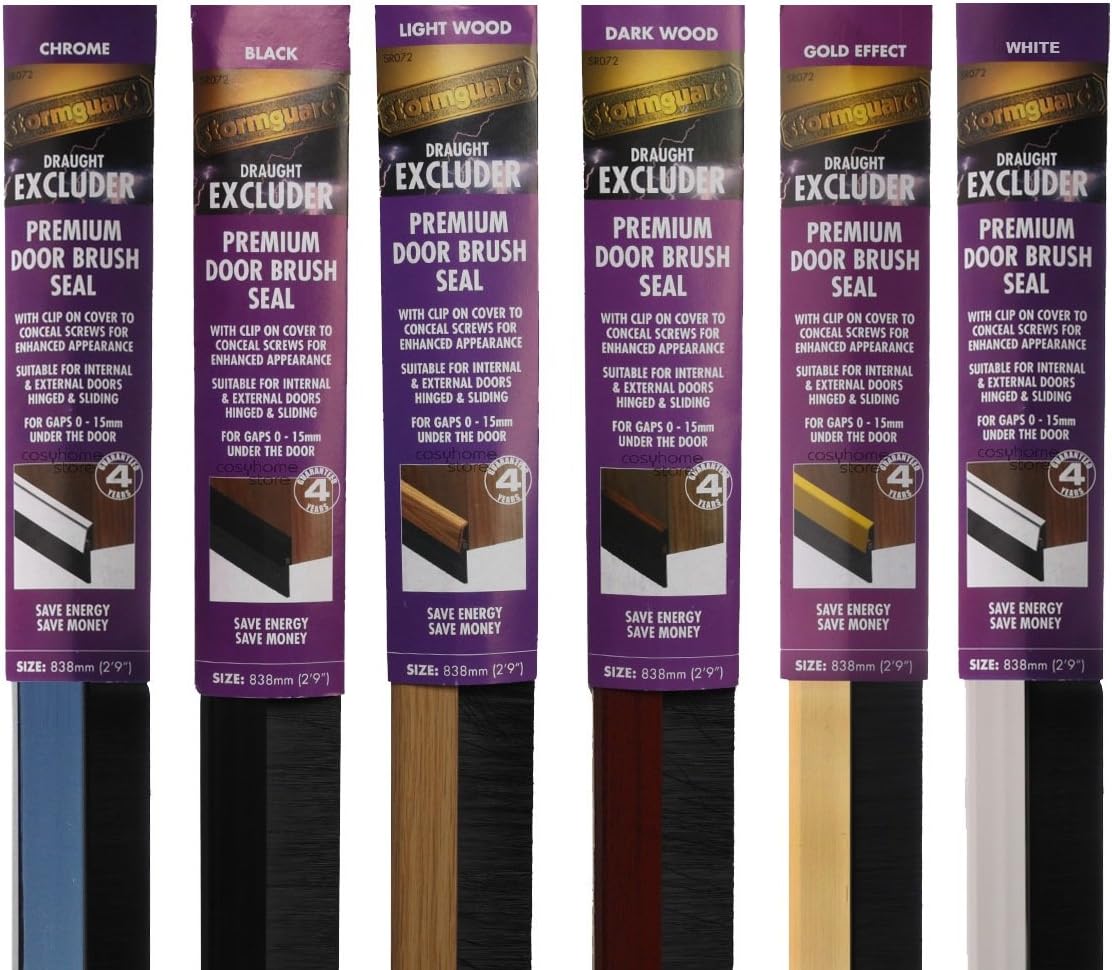

STORMGUARD 02SR0720914W White 914 mm Draught Excluder Cover Clip Bottom Door Brush Seal

Fitting
1. With door closed, measure bottom of door width
2. Unclip concealing cover and slide brush out of carrier/housing
3. Cut carrier/housing to size using hacksaw – cut through small metal rod (only 3mm wide) holding brush in place
TipCrimp brush metal housing using pliers to prevent brushes falling out – ie squeeze ends with pliers so they are compressed
4. Offer up door seal against door, so bottom of brush is only just above floor surface closing gap between bottom door and floor, and mark where holes appear against door with pencil
Tip
Drill pilot holes for screws so screws can be screwed in without damaging screw head
5. Remove adhesive tape backing, position door seal, and screw firmly to base of door
6. Adjust if necessary for perfect fit – slotted holes aid adjustment up or down
7. For attractive finish, press cover strip onto carrier.
