Mophorn AI-7 Fiber Fusion Splicer with 8 Seconds Splicing Time Melting 18 Seconds Heating Fusion Splicer Machine Optical Fiber Cleaver Kit for Optical Fiber & Cable Projects
$980.39

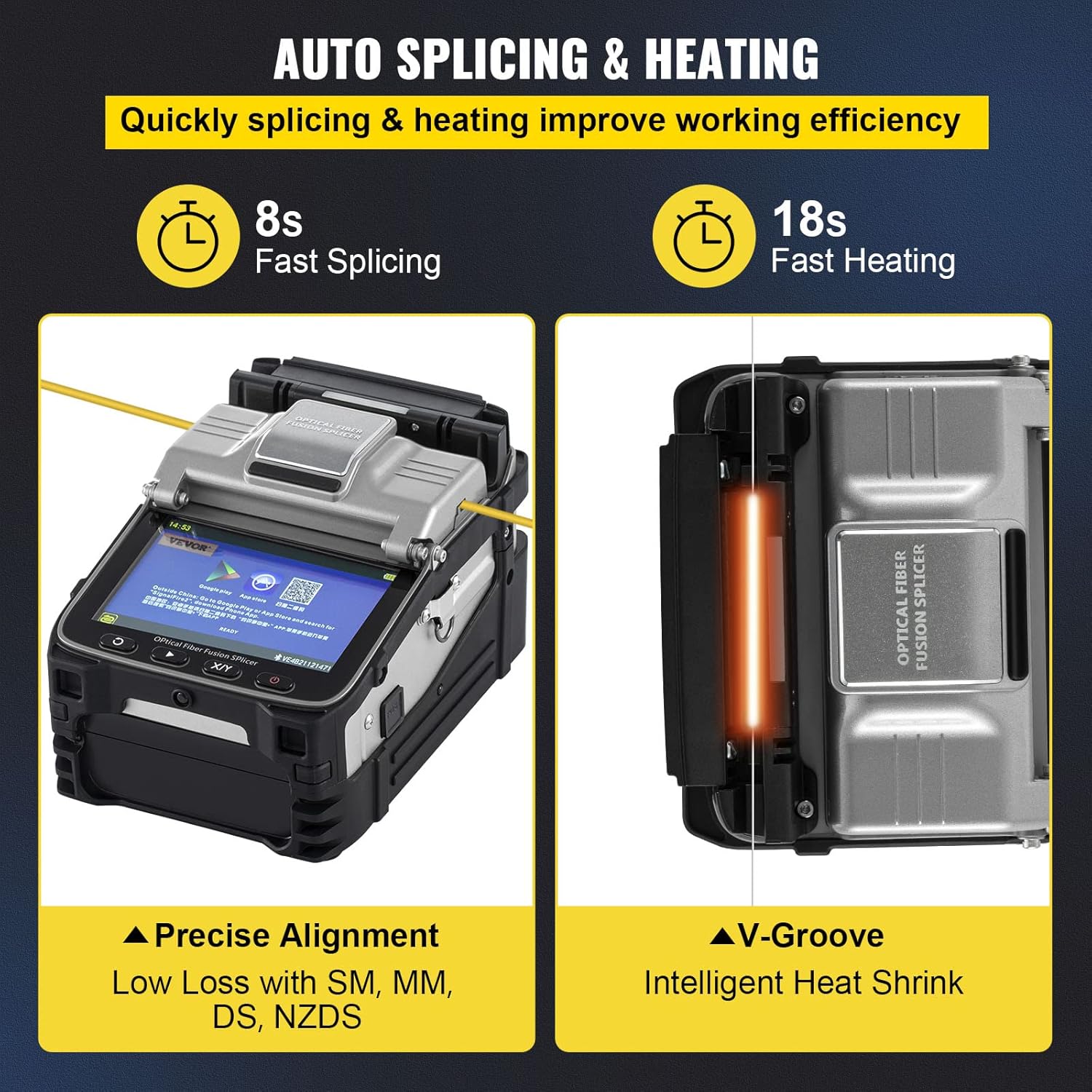

- 【8S SPLICING & 18S HEATING】- With high-speed image processing technology, it can complete the whole process of fiber fusion splicing automatically in just 8 seconds; 18 seconds heating. Compared with the ordinary fiber splicing machine on the market, the efficiency is increased by 50%.
- 【3 IN 1 FIBER HOLDER】- It uses auto focusing and core alignment technology, which is more precise and less signal loss than cladding alignment technology. SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable. Applicable Fibers:SM(G.652&G.657);MM(G.651);DS(G.657);NZDS(G.655).
- 【5’’ TFT DISPLAY】- It adopts 5-inch 800X480 high-resolution screen, and the operation graphics are simple and intuitive which ups to 300 times focus amplification.
- 【7800MAH LITHIUM BATTERY】- 7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours,continuous splicing and heating about 200 times.
- 【USED BROADLY】- It is especially suitable for optical fiber and cable projects, maintenance scientific research, railway, petrochemical, electric power, military and public security and other communications fields.
Tough Equipment & Tools, Pay Less
VEVOR is an innovative brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough and cost-effective equipment & tools.
Why Choose VEVOR?
- Premium Tough Quality
AI-7C Fusion Splicer
8s Splicing & 18s Heating & 5-inch LCD Screen
This fiber fusion splicer machine is mainly used to connect optical fibers with high performance and reliable quality, which can be further connected with ordinary optical fiber cables, jumpers, multiple-mode, and dispersion-shifted quartz optical. It features 8 second splice time and 18 second heat time, 200 heating time due to the high-capacity battery.
- Faster Splicing & Heating
- 3-in-1 Fiber Holder
- Charging Functional Port
- Separable and Portable Design
- Clear LCD & Long Time Standby
Key Features
|
|
|
|
|---|---|---|
Excellent Splicing PerformanceThe fiber fusion splicer can complete the whole process of fiber fusion splicing automatically in just 8 seconds, heating in 18 seconds. The high-speed image processing technology unique precision positioning technology is applied while working. |
3 in 1 Fiber HolderSM, MM, bare fiber, pigtail, rubber-insulated, multi-fiber cable. Applicable Fibers: SM(G.652&G.657);MM(G.651);DS(G.657);NZDS(G.655). It is fully qualified with FTTH projects, security monitoring, and other fiber cable splicing projects. |
Multi-functional PortWith the multi-functional port, you can use the external LED light at night for the precise operation. You will be allowed to charge your phone with the charging voltage of DC 13.5V/4A. |
|
|
|
|
|---|---|---|

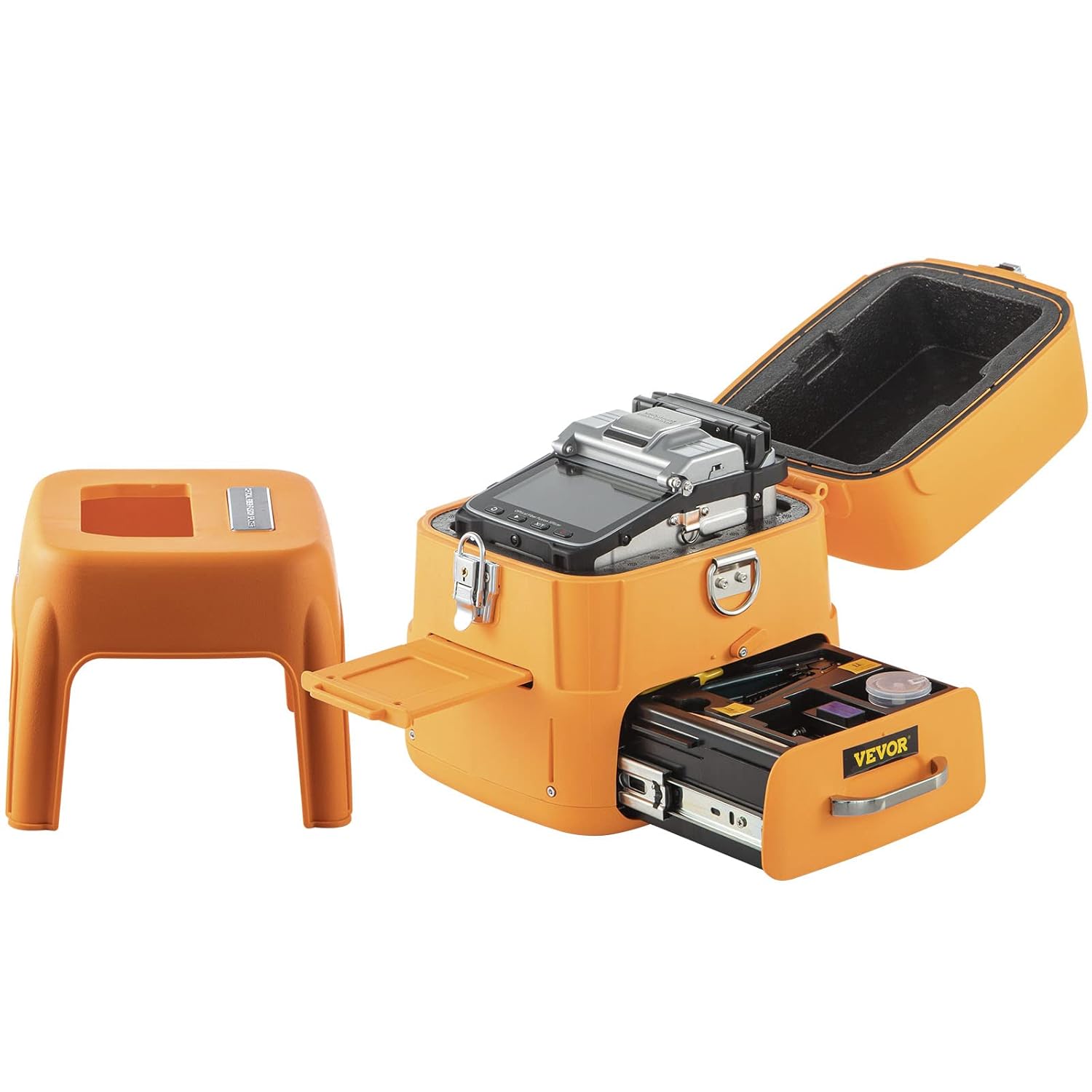

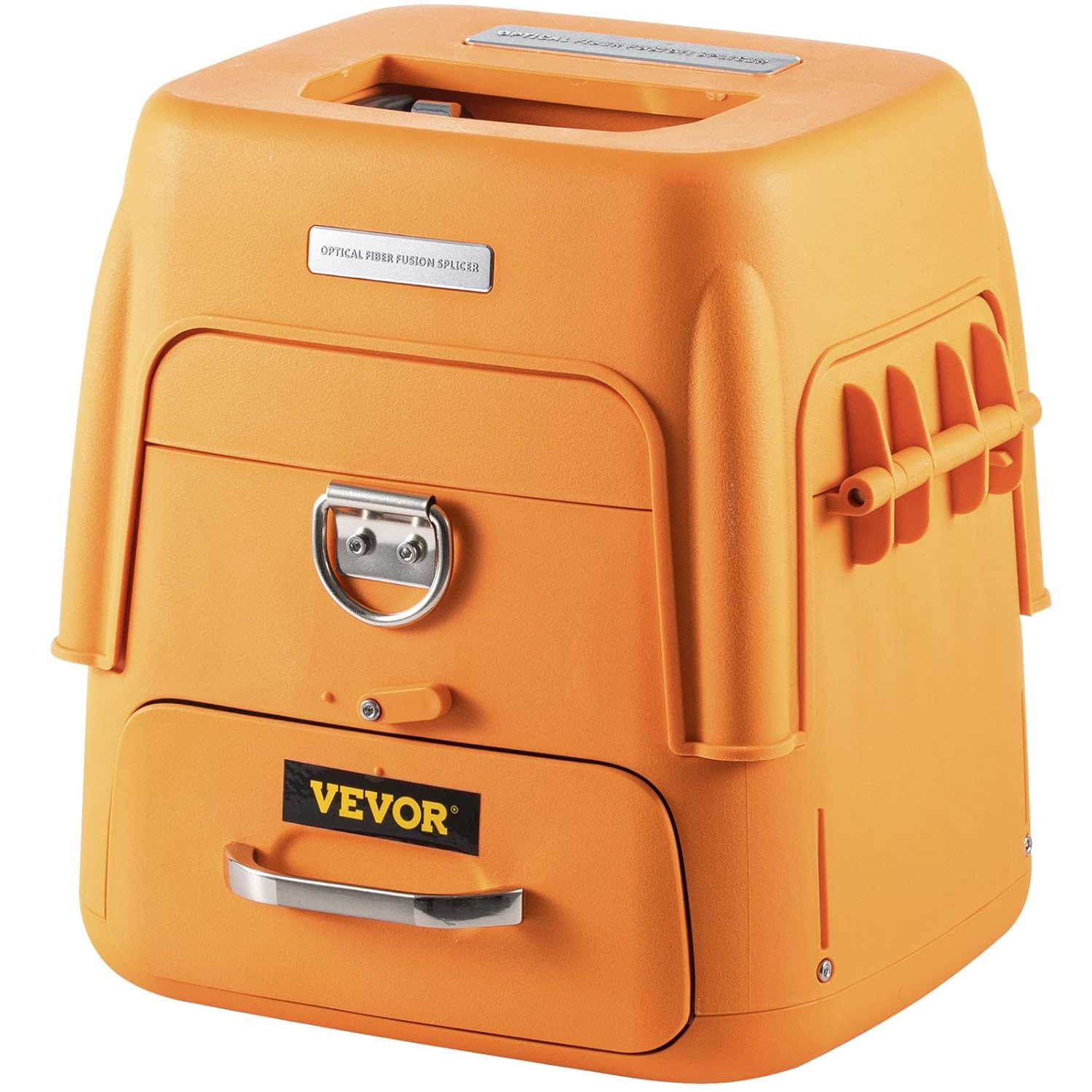

Compact & PortableThe toolbox comes with a stool to facilitate the construction workers, weight-bearing 100 kg. Do not need to take out the splicer machine from the toolbox while working. |
Clear LCD & 7800 mAh Battery5-inch high-resolution LCD screen. The machine can easily and clearly observe the optical fiber. 7800 mah high-capacity lithium battery can continuously splice and heat about 200 times. |
Sturdy ConstructionSturdy structures meet different working area requirements, dust-proof, shock-proof, and freeze-proof. Fiber optic fusion splicer is especially suitable for optical fiber and cable projects, maintenance scientific research, and teaching in telecommunications. |
Package Content
- 1 x Fusion Splicer
- 1 x Fiber Cleaver
- 1 x Box
- 1 x Accessory Kit
Specifications
- Applicable fibers: SM(G.652&G.657)、MM(G.651)DS(G.657)、NZDS(G.655)
- Fiber alignment: Core/cladding alignment
- Splicing time: 8s
- Heating time: 18s
- Heating mode: Automatic heating（Preheating）
- Focus mode: Six motors Auto focus
- Splice Loss: 0.025dB（SM）、0.01dB（MM） 0.04dB（DS/NZDS
- Control technology: Real-time control and calibration of fusion ARC
|
|
|
|
|
|
|---|---|---|---|---|---|
|
AI-7 Fiber Fusion Splicer |
AI-8 Fiber Fusion Splicer |
AI-9 Fiber Fusion Splicer |
A-80S Fusion Splicer |
JW4108S Fusion Splicer |
|
| Splicing Time | 8s | 6s | 5s | 9s | ≤9s |
| Heat Time | 18s | 15s | 15s | 26s | ≤30s |
