Little Giant 553455 EC-400 115-volt in-Pan Condensate Removal Pump, 1-Pack

Product Description

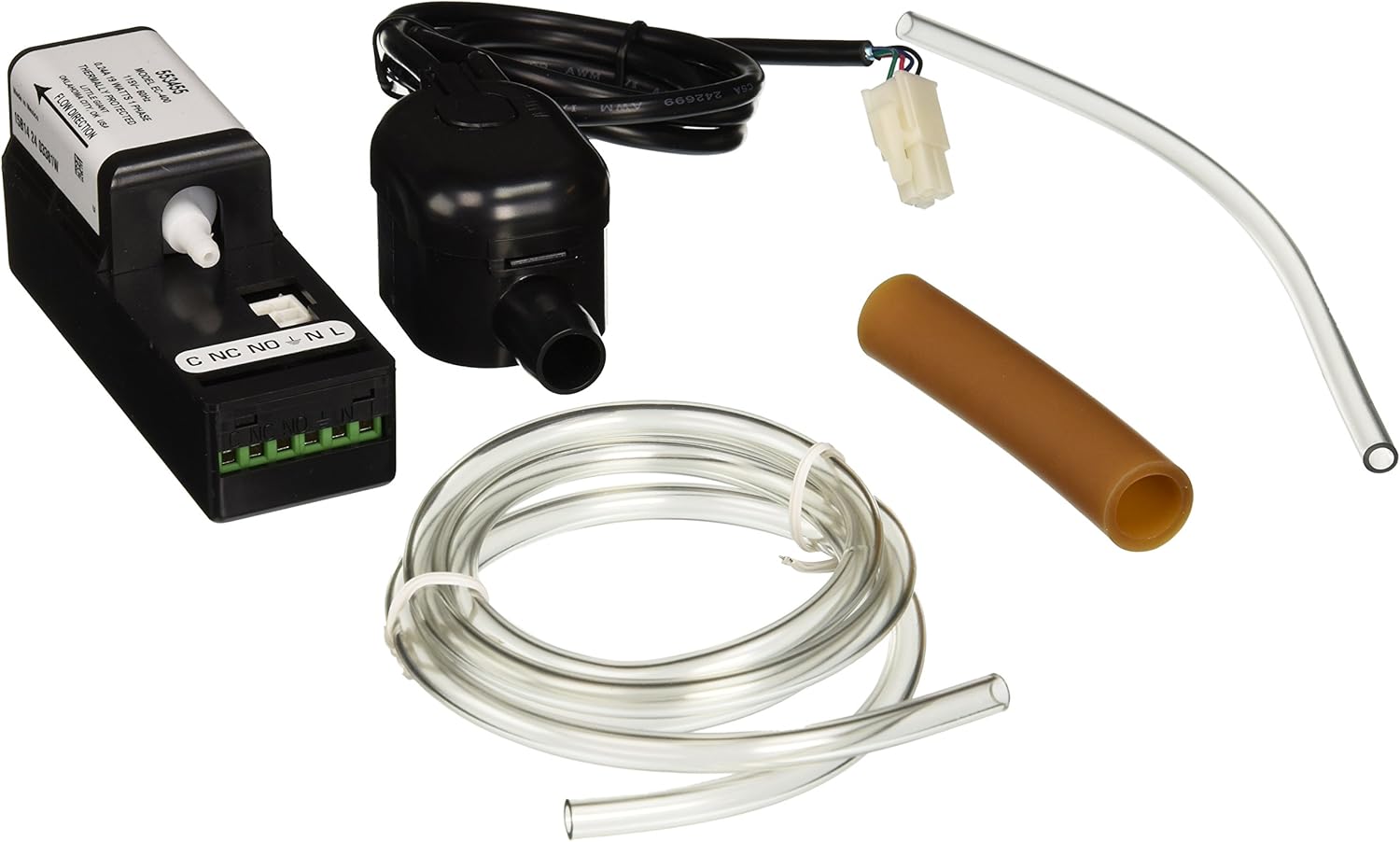

Little Giant EC-400, 3 GPH – In-Pan Condensate Removal Pump (553455) The Little Giant EC-400 Electronic Condensate Pump is a complete pumping system designed to remove condensation from wall mounted, ceiling and cassette split air conditioning equipment. The EC-400 consists of 2 components: pump/control unit and reservoir. The compact, two-piece design allows installation in every system. Both components can be placed into the air handler. Pump is self-priming and can be placed inside air handler or located up to 1.0m above reservoir. A three position symmetrical float detection system assures reliable ON, OFF and SAFETY ALARM functions. The 553455 model has 115V, 60HZ, 0.24 Amps. Little Giant EC-400, 3 GPH – In-Pan Condensate Removal Pump (553455) Features: ? Uses Only .3 amps of Standby Power ? Encapsulated Circuit Board/Controller and Pump ? Compact Two-piece Design for Quick and Flexible Installation ? 5/32″ x 1/4″ Barbed Adapter Included ? For Applications with Intermittent Operation – Maximum 50% Duty Cycle ? Condensate Produced in Application must be no more then 1/2 the Pump’s Flow Rate for Any Given Head ? Suction tubing – 3′ x 5/32″ ID, Vent tubing – 8″ x 5/32″ ID, Drain tubing – 3″ x 1/2″ ID Little Giant EC-400, 3 GPH – In-Pan Condensate Removal Pump (553455) Specifications: ? Flow 3 GPH ? Shut Off 35.1′ ? Voltage 115 ? Hertz 60 ? Amps 0.24 ? Watts 19 ? Weight 1.17 lbs.

From the Manufacturer

Little Giant EC-400, 3 GPH – In-Pan Condensate Removal Pump (553455) The Little Giant EC-400 Electronic Condensate Pump is a complete pumping system designed to remove condensation from wall mounted, ceiling and cassette split air conditioning equipment. The EC-400 consists of 2 components: pump/control unit and reservoir. The compact, two-piece design allows installation in every system. Both components can be placed into the air handler. Pump is self-priming and can be placed inside air handler or located up to 1.0m above reservoir. A three position symmetrical float detection system assures reliable ON, OFF and SAFETY ALARM functions. The 553455 model has 115V, 60HZ, 0.24 Amps. Little Giant EC-400, 3 GPH – In-Pan Condensate Removal Pump (553455) Features: ? Uses Only .3 amps of Standby Power ? Encapsulated Circuit Board/Controller and Pump ? Compact Two-piece Design for Quick and Flexible Installation ? 5/32″ x 1/4″ Barbed Adapter Included ? For Applications with Intermittent Operation – Maximum 50% Duty Cycle ? Condensate Produced in Application must be no more then 1/2 the Pump’s Flow Rate for Any Given Head ? Suction tubing – 3′ x 5/32″ ID, Vent tubing – 8″ x 5/32″ ID, Drain tubing – 3″ x 1/2″ ID Little Giant EC-400, 3 GPH – In-Pan Condensate Removal Pump (553455) Specifications: ? Flow 3 GPH ? Shut Off 35.1′ ? Voltage 115 ? Hertz 60 ? Amps 0.24 ? Watts 19 ? Weight 1.17 lbs.
