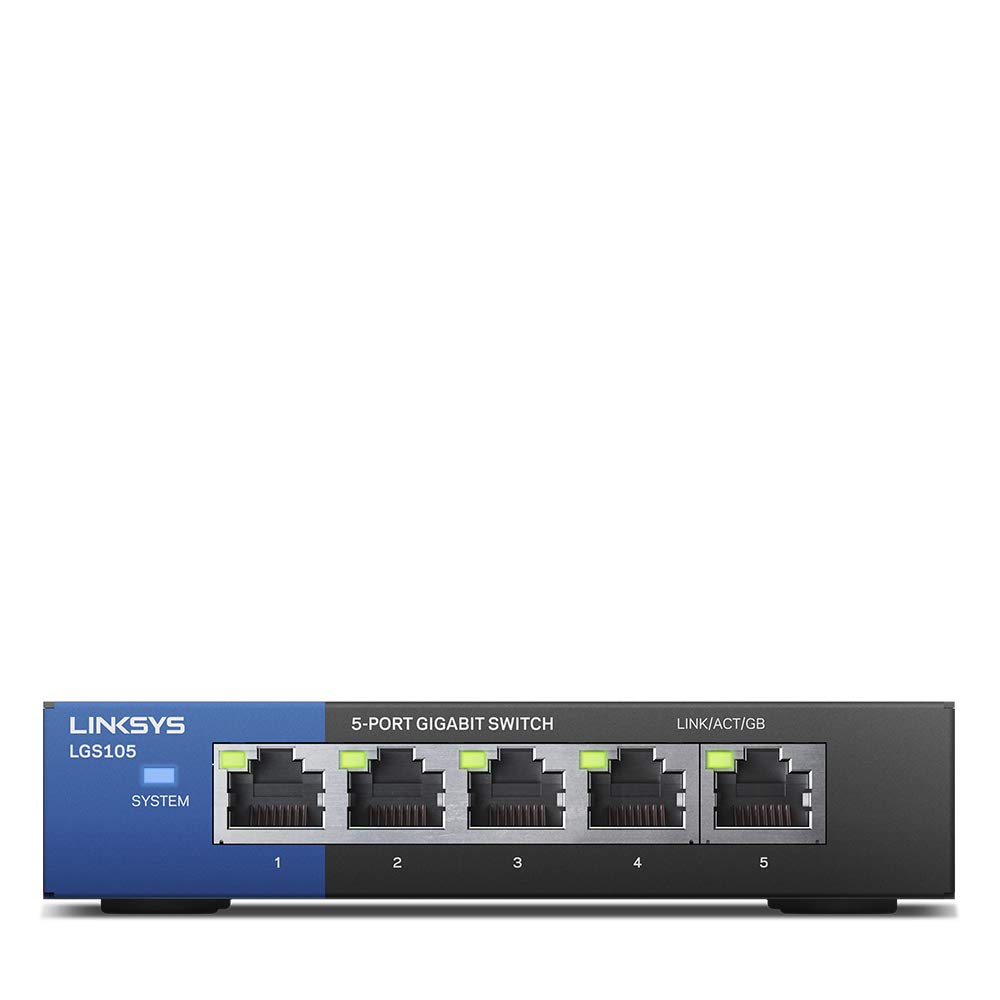

Linksys LGS105 Business 5 Port Desktop Gigabit Unmanaged Network Switch

Linksys 5-Port Desktop Gigabit Switch
A wireless network may not be the best option for your business for a variety of reasons, including unreliability, slow download speeds, privacy concerns, and your daily data transference. Upgrade the data paths of your local wired network to information superhighways with Gigabit switches at the desktop. Accelerate your performance and productivity when you send large files to network servers, drives, and printers at Gigabit speed. Gigabit performance
These unmanaged switches offer Gigabit speeds to minimise transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference. Plug-and-play convenience
Linksys unmanaged switches offer a quick and easy solution to extend your office network with plug-and-play installation. Key Features Gigabit performance
The unmanaged switch offers Gigabit speeds to minimise transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference. Plug-and-play convenience
The Linksys unmanaged switch offers a quick and easy solution to extend your office network with plug & play installation. Power saving features
Power saving features include auto power-down to disable unused ports, smart power for short cable runs, and a port status switch to control LED lights. Linksys switches can help to improve server room performance. View Larger . You don’t have to have a server room to benefit from the performance of a Linksys switch. View Larger . Compare the range of Linksys 100 series switches Linksys 5-Port Desktop Gigabit Switch Linksys 8-Port Desktop Gigabit Switch Linksys 16-Port Desktop Gigabit Switch Linksys 24-Port Gigabit Switch Linksys 8-Port Desktop Gigabit PoE Switch Linksys 16-Port Desktop Gigabit PoE Switch Linksys 24-Port Gigabit PoE Switch Product reference code LGS105 LGS108 LGS116 LGS124 LGS108P LGS116P LGS124P Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+) IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+) IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+) Number of ports
5 Gigabit
8 Gigabit
16 Gigabit
24 Gigabit
8-port switch with 4 PoE+ ports (first 1–4 ports) and dedicated PoE power budget of 50W
16-port switch with 8 PoE+ ports (first 1–8 ports) and dedicated PoE power budget of 80W
24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120W
MAC address table size 8,000 entries 8,000 entries 8,000 entries 8,000 entries 8,000 entries 8,000 entries 8,000 entries Speed 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100/1000 Bandwidth 10 Gbps (non-blocking) 16 Gbps (non-blocking) 32 Gbps (non-blocking) 48 Gbps (nonblocking) 16 Gbps (nonblocking) 32 Gbps (nonblocking) 48 Gbps (nonblocking) Performance
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
1.488 Mpps
0.1488 Mpps
0.01488 Mpps
1.488 Mpps
0.1488 Mpps
0.01488 Mpps
1.488 Mpps
0.1488 Mpps
0.01488 Mpps Quality of Service
–
–
802.1p and DSCP
802.1p and DSCP
802.1p and DSCP
802.1p and DSCP
802.1p and DSCP Certifications FCC Class B, CE FCC Class B, CE FCC Class A, CE FCC Class A, CE, UL, CB FCC Class A, CE FCC Class A, CE FCC Class A, CE, UL, CB
