Generic Hydraulic Tube Expander 7 Lever Tubing Expanding Tool Swaging Kit HVAC Tools

Specification
For inch:3/8′、1/2′、5/8′、3/4′、7/8′、1″、1-1/8″O.D. Tubing Inner- outer Reamer:Zinc body,1/4′to1-5/8″ O.D.tubing.
Reams botn inside and outside edges of tubing.
Heavy duty Cutter: Aluminum alloy body for 1/4′to 2′.

Six Easy Steps
1. De burr inside of tube.
2. Anneal the tube if necessary (for hard or thick wall tube).
3. Screw the expander head on expander.
4. Put the end of tube on expander head.
5. Tighten the relief value knot to ‘on’ position then pump handle until tube is expanded to the end.
6. Turn the relief value knob to ‘OFF’ position to loosen expander head. Remove expanded tube.

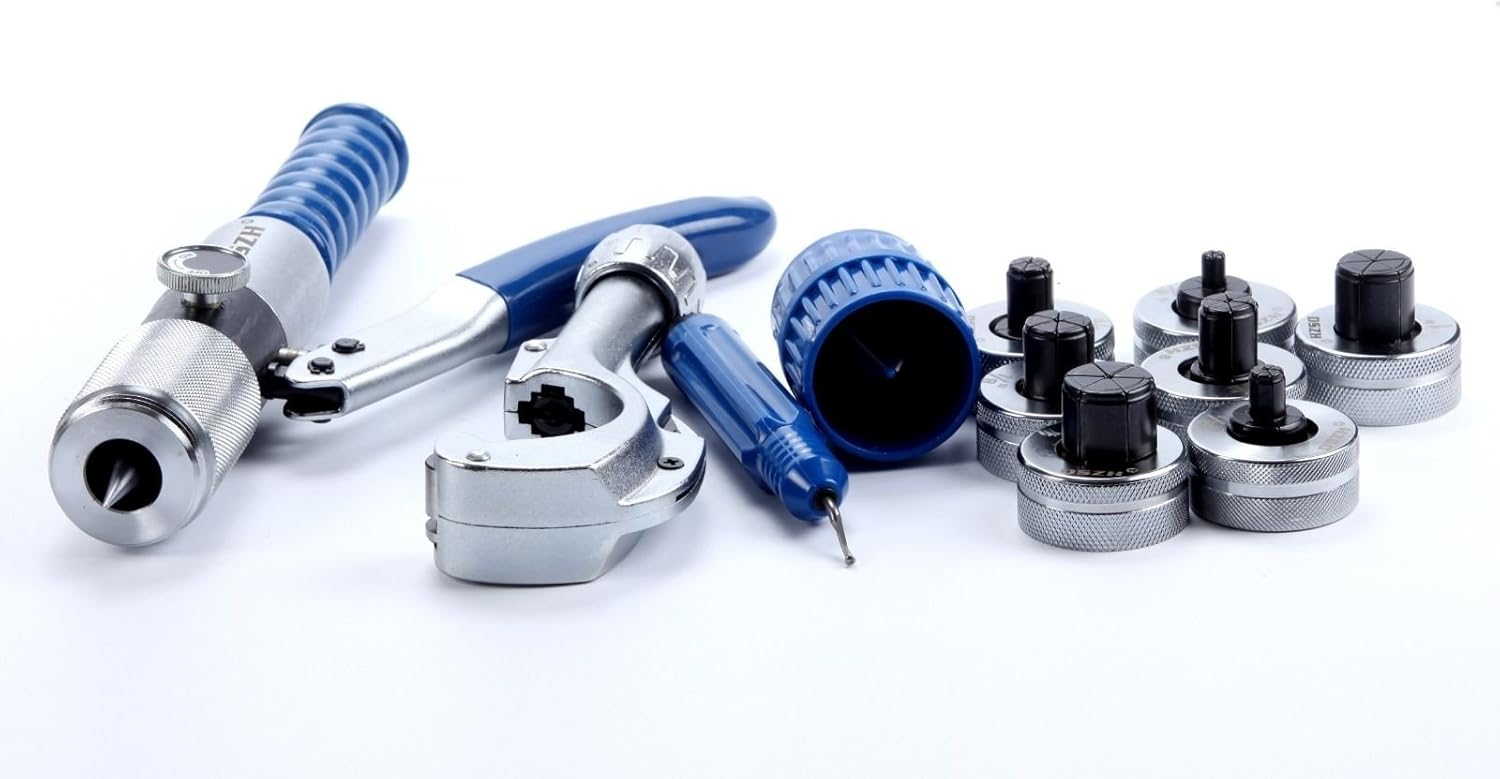

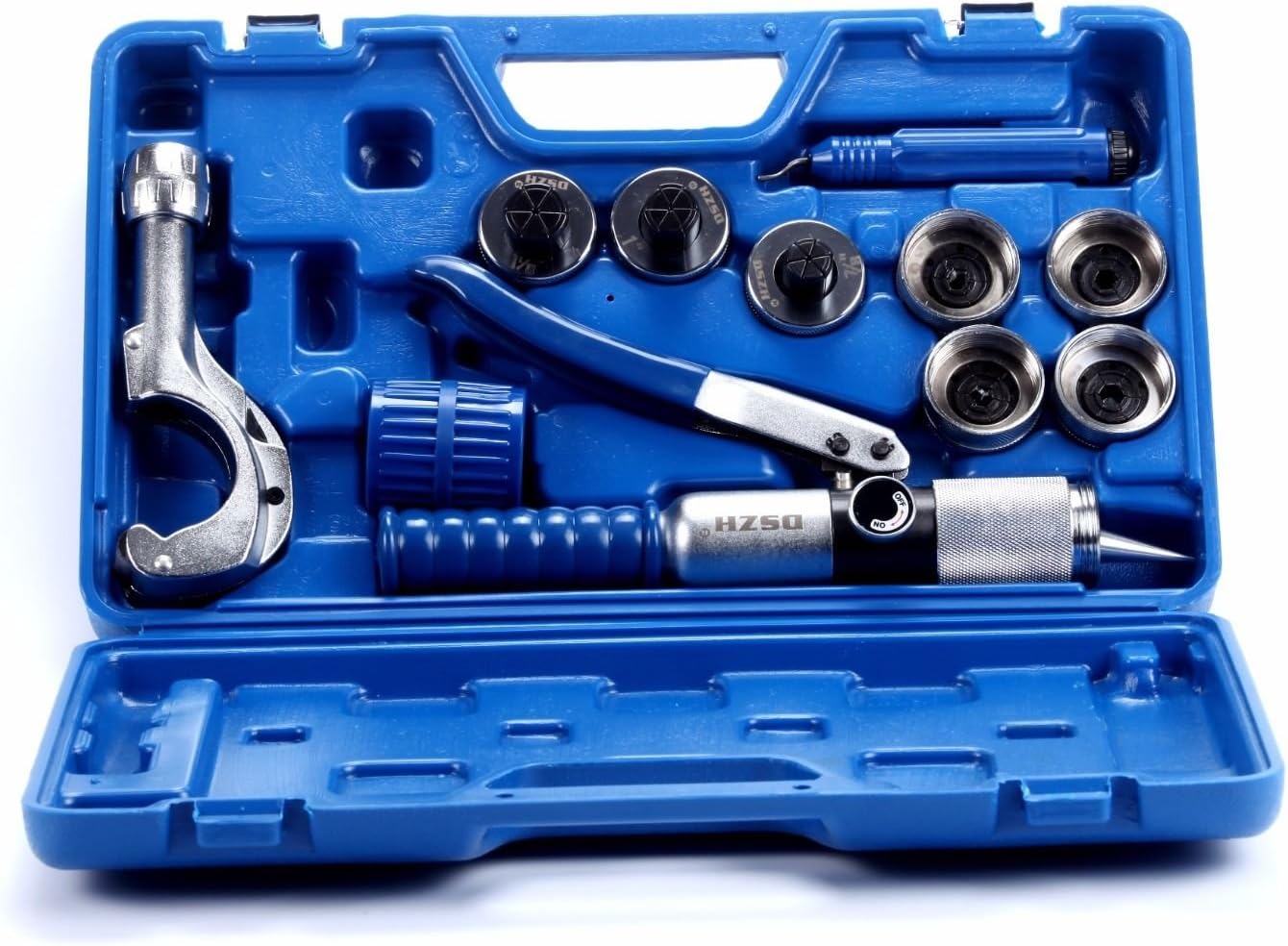

Package Included

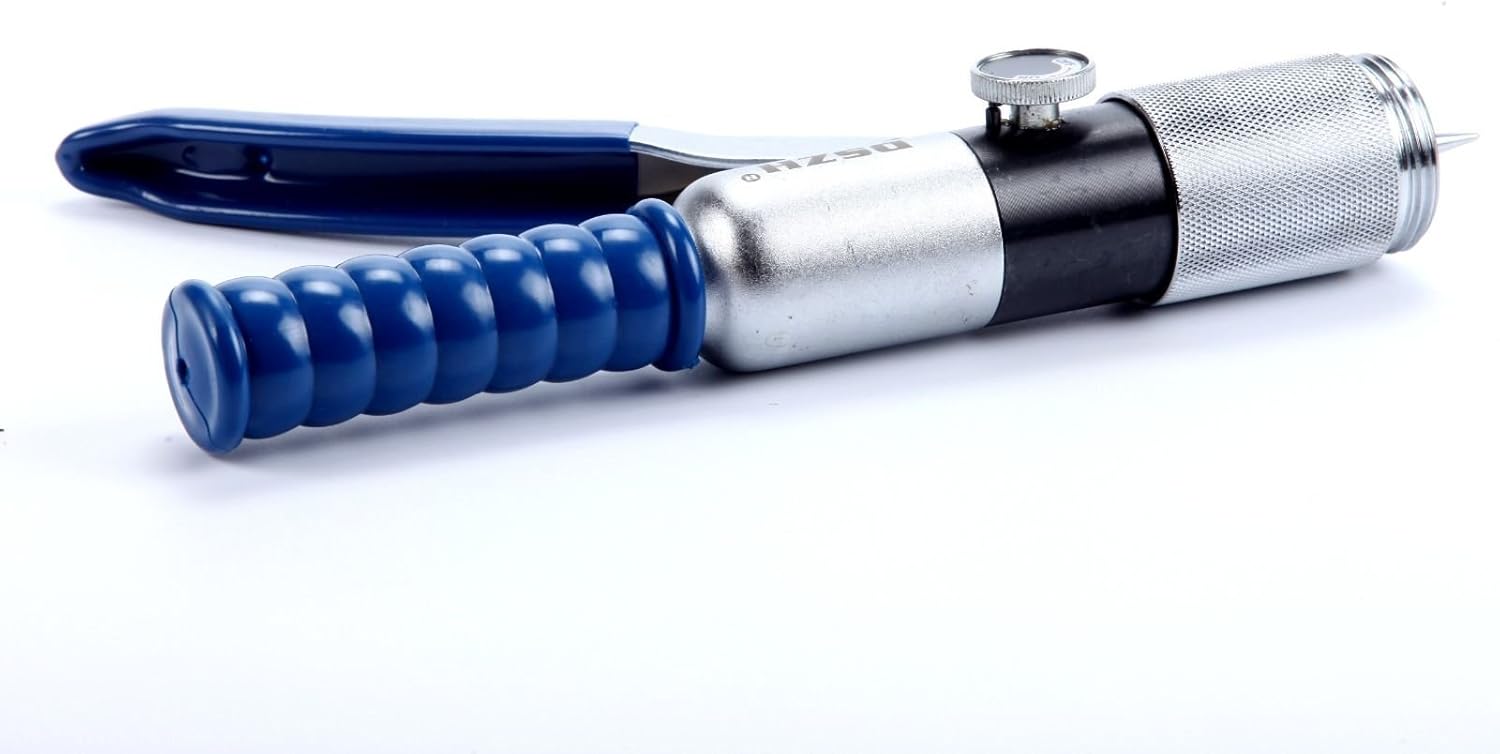

1 x Hydraulic Tube Expander
1 x Tube Cutter
1 x Inner-outer Reamer

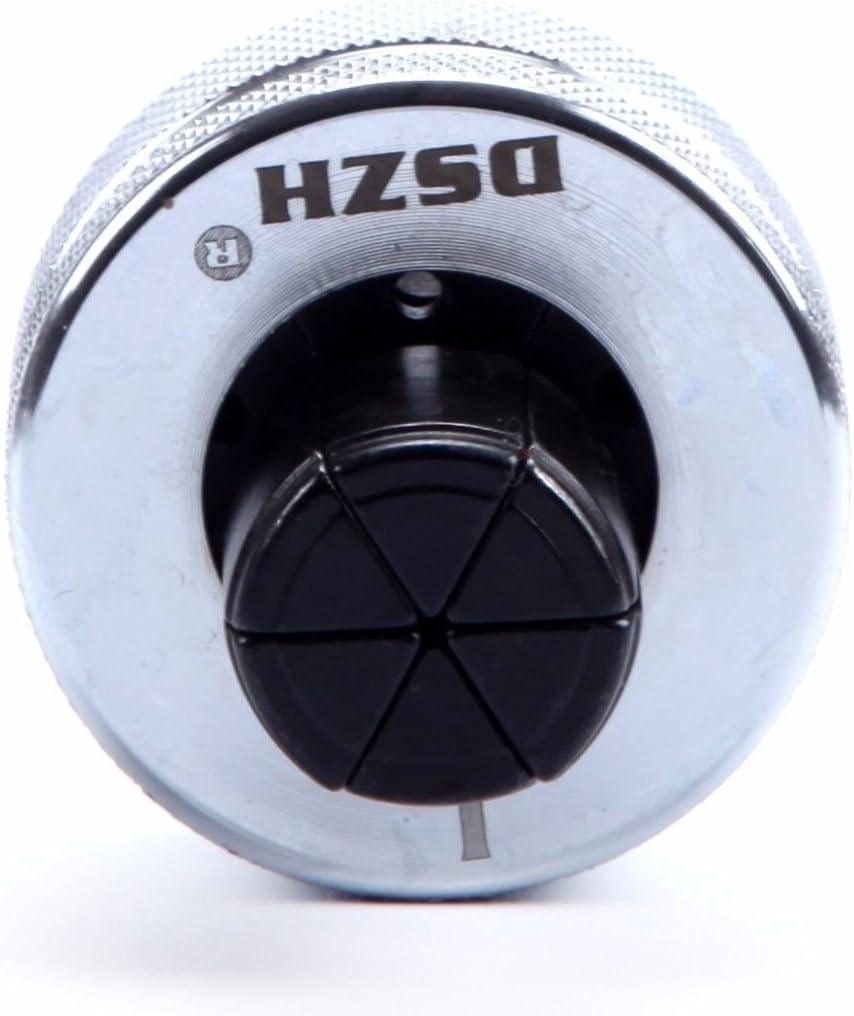

7 x Expander Heads
1 x Enghlish User Manua
