Digi-Pas 2-AXIS ULTRA-Precision Digital Level 1-acrsec (0.005mm/M), Inclinometer, DWL8500XY + PRO Software (NIST-Traceable)
$5,966.29
- Digi-Pas 2-AXIS, ULTRA-Precision, Wireless, Digital Level/Inclinometer, REVOLUTIONIZE precision alignments by SIMULTANEOUSLY display both X&Y axis level states WIRELESSLY on your Smartphone, Tablet and PC screen while you are adjusting machine footings. This allows with ONE-MAN operation, thus completely eliminates using 2 units of single-axis levels, with TWO-MEN operation as experienced on Old-fashioned Spirit level or single-axis inclinometer.
- Tedious repetition on going ‘back-and-forth’ checking ‘bubble’ level position in-between tiny graduation lines is NOW THINGS OF THE PAST. Digi-Pas SMART LEVEL greatly CUT-DOWN precision alignment TIME (by >70%) and in combine with one-man operability allow GREAT COST SAVING as well as improve QUALITY of installation, setup & maintenance of large-sized CNC machines, XY-Table Ball-Screw STRAIGHTNESS & SURFACE FLATNESS and equipment requiring delicate alignments or sensitive to vibration.
- Real-time MONITORING and LOGGING (save in Excel) on leveling states, planar angles, 3D straightness/surface-flatness profiling and VIBRATION amplitudes. ANALYSIS on both static & dynamic positional stability of an alignment-sensitive equipment. Unlike those CONVENTIONAL pendulum single-axis level technology, Digi-Pas industrial-grade MEMS technology can withstand HIGH SHOCK resistant accommodating ROUGH handling. USER SELF-CALIBRATION function included.
- RESOLUTION: 1-arcsecond (0.005mm/M). Measurement range: 0 ~ ±14,000 arcsec. (1-Axis); 0 ~ ±7,200 arcsec. (2-Axis). Accuracy: ± 1-arcsecond from 0 to ±1,080arcsec. Bluetooth range >150ft (Industrial CLASS 1). Operating Temp.: 50～104°F. PC Sync Pro Software is included.
- ACCURACY of patented Digi-Pas 2-axis Ultra-Precision Inclinometer has been verified by accredited Calibration & Test Laboratories traceable to NIST, JIS & DIN. This purchase includes a manufacturer’s calibration certificate. Users who needs a NIST-traceable Calibration Certificate with data, please visit our website for sample certificates and contact our sales support team.
Out of stock
buy on amazon
WIRELESSLY LEVELLING CNC MACHINE
LEVELING ALIGNMENT, STRAIGHTNESS & SURFACE FLATNESS MEASUREMENTS are vital processes in precision machines, image-capturing measurement & testing equipment. Imprecise leveling affects machine's structural stability (inducing more VIBRATIONS) during active operation thus severely reduces dimensional accuracy and quality performances of outputs. In fact, without leveling a machine to its utmost precise condition, one could not ensure a machine’s own weight is proportionately distributed over its footings to achieve MAXIMUM STRUCTURAL STABILITY.
Digi-Pas DWL8500XY is an ULTRA-PRECISION 2-Axis Digital Level & INCLINOMETER with built-in SURFACE FLATNESS PROFILER & VIBROMETER for levelling, angle, CNC ball-screw straightness, XY work-table flatness, angular alignment & vibration measurements, and performing real-time DATA ACQUISITION & DATA LOGGING with USB or WIRELESS Bluetooth connections. Acquired data can be saved into Microsoft Excel format for further analysis.
ADVANCED functional features greatly simplifying the task for professionals & tradesmen in installation, set up and maintenance of precision machines, test/measuring instruments. It is a LEVELING, ANGULAR ALIGNMENT, STRAIGHTNESS & FLATNESS DIAGNOSTIC instrument usedby R&D engineers & scientists when performing alignment-sensitive equipment to evaluate STRUCTURAL STABILITY during either steady state orrunning state in real-time (dynamic state).
ACCURACY performance to specification has been verified by accredited 3rd party calibration laboratories & test bodies in US, Japan & Germany in accordance with ISO/IEC 17025.2005 and/or ANSI/NCSL Z540-1 standard, traceable to NIST, JIS & DIN. To purchase an unit accompanied with NIST-traceable calibration certificate with data, please visit www.digipas.com/support/calibration.php. This level come with 1-year mfr's free repair or exchange.
For over a decade, GRANTED with a portfolio of patents US Pat. No. 9,459,121 B, U.S. Pat. No. D 692,328 S, & Reg. No. 4,527,224, Digi-Pas 2-axis digital level utilizing advanced MEMS technology has proven to effectively replace old-fashioned single-axis spirit vial levels. This instrument has VERY HIGH impact/shock resistance compared to conventional pendulum-based inclinometer which easily damage when roughly handled or drop. Digi-Pas PRECISION intelligent angular & leveling measuring instruments has another 0.2 arcsec (0.001mm/m) resolution model DWL9000XY and also DWL5500XY & DWL5800XY Sensor Modules have been widely used by some of the world’s most technologically advanced companies, research laboratories and government institutions all over the world.
APPLICATIONS for INSTALLATION, SETUP and MAINTENANCE of LARGE-SIZED precision CNC machines, CNC Ball-Screw straightness, XY Work-Table flatness, Granite-table surface flatness profiling, Vision Measurement equipment, CT Scan and MRI equipment, Automotive & Semiconductor Manufacturing equipment, Precision Engineering Machinery etc.
Key Features
|
|
|
|
|
|---|---|---|---|

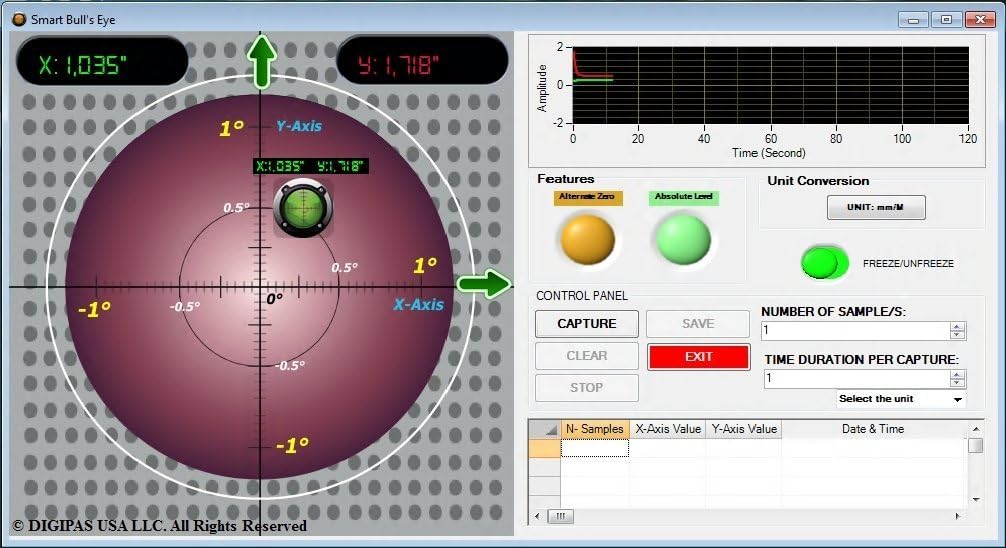

2-AXIS DISPLAYDisplay Dual-Axis (X-Y) angle & vibration values in real-time on either instrument's screen or Laptop/mobilephone screens. View 2-axis angle/leveling status SIMULTANEOUSLY in DIGITAL & Graphical "Bull Eye" Animation INSTANTLY. EFFECTIVELY REPLACES 2 pieces of Old-fashioned Spirit Levels in one go. |

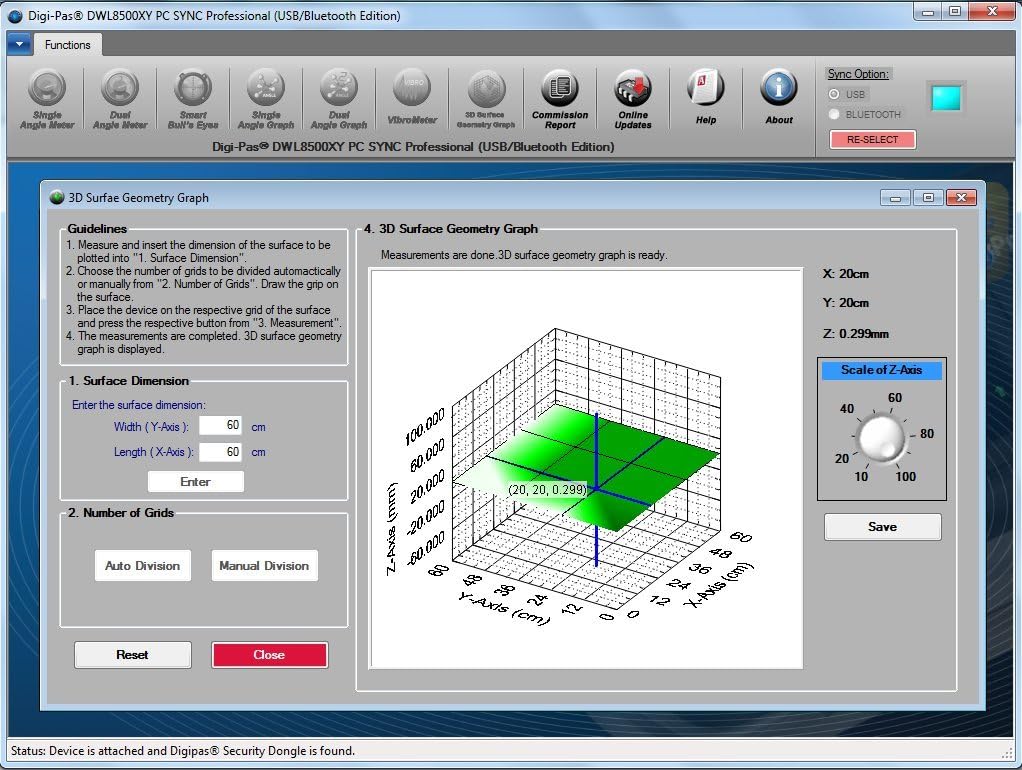

SURFACE GEOMETRY PROFILE GRAPHPC SYNC PROFESSIONAL software enables user to generate a BALL-SCREW STRAIGHTNESS profiling. This feature is useful to inspect mid-to-large sized CNC ball screw during set up and maintenance. By placing DWL8500XY on top of the screw holder, ball screw can be indexed to a fixed distance of steps, recorded data is AUTOMATICALLY generated to form a 3D graph depicting the screw straightness. Surface of a plate or granite table may be measured to generate flatness profile. |

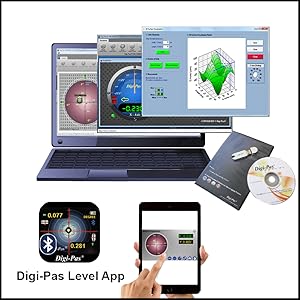

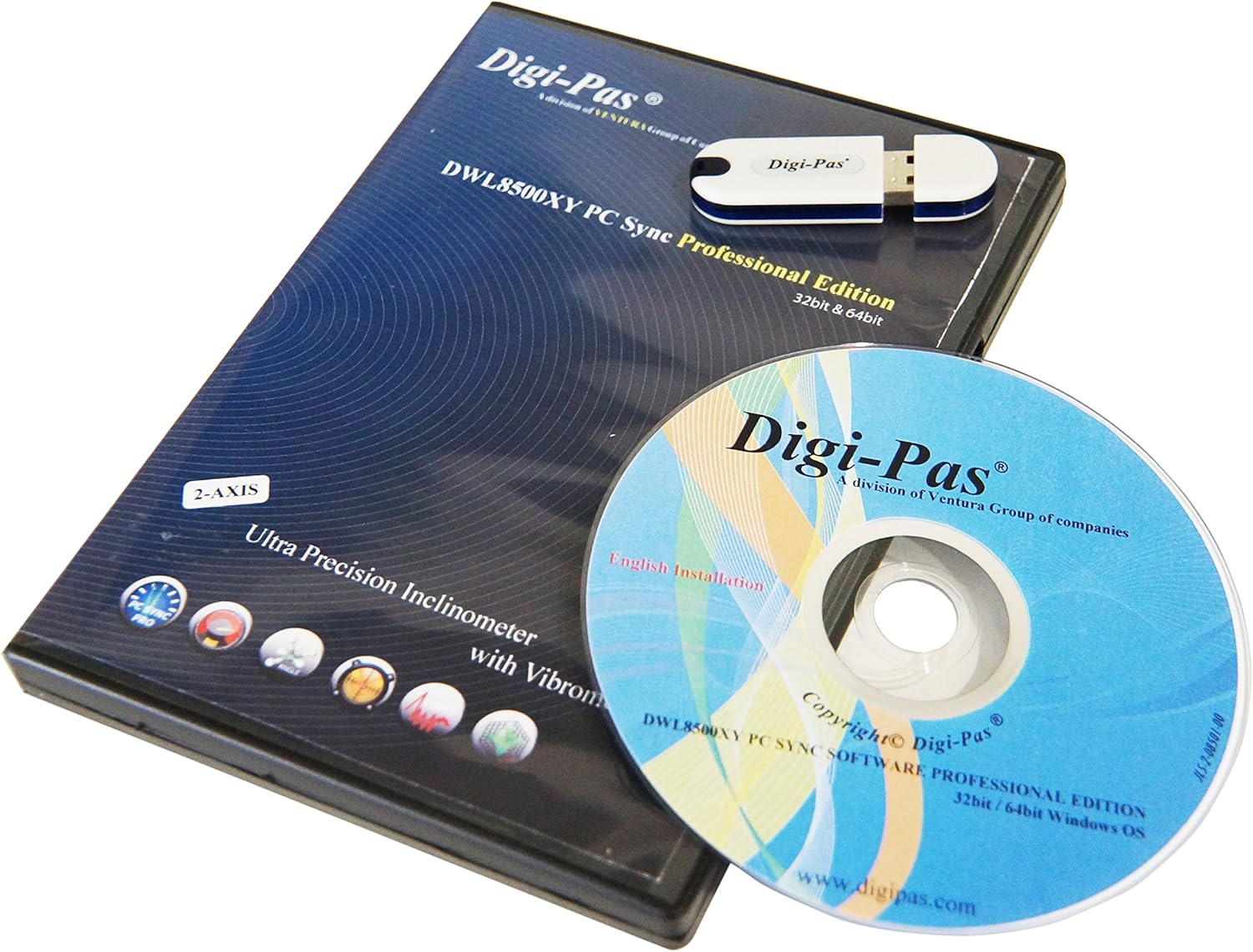

SOFTWARE & MOBILE APPProfessional version of PC Sync Software (included in each purchased) enables ADVANCED features for MONITORING, DATA LOGGING, RECORDING & ANALYSIS on leveling, angular , surface flatness and vibration readings via USB cables or wireless Bluetooth. Data logging and recording features require use of PC Sync Professional Software. For more info, please visit www.digipas.com. |

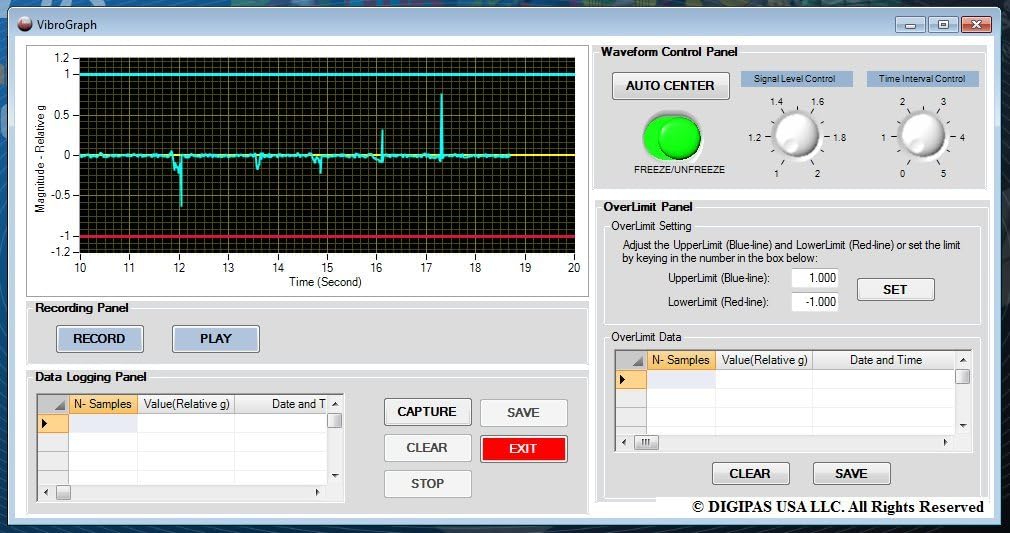

XY-TABLE STRAIGHTNESS CHECKTo detect XY-Table straightness and surface flatness profile in precision alignments of a machine during setup and maintenance. Built-in Vibrometer for Real-time vibration patterns monitoring on device screen, for data logging, recording & analysis on PC. ANALYSIS on both static & dynamic positional stability of an alignment-sensitive equipment. |
Dual Power Sources
Use a rechargeable Battery Bank plugged into USB connector to significantly EXTEND your instrument operating hours.
When connected to external battery or USB source, the instrument automatically select external power source in order to preserve its internal AAA batteries.
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
|
DWL-1300XY |
DWL-1500XY |
DWL-3000XY |
DWL-3500XY |
DWL-8500XY |
DWL-9000XY |
|
| Measuring Range | 0.00° ~ ±5.00° | 0.000° ~ ±2.000° | 0° ~ ±90° Single-Axis, 0° ~ ±15° Dual-Axis | 0° ~ ±20.000° Single-Axis, 0° ~ ±10.000° Dual-Axis | 0.0 to 14400 arcsec. Single Axis, 0.0 to 7200 arcsec Dual Axis | 0.0 to 7200 arcsec. (Single Axis); 0.0 to 3600 arcsec. (Dual Axis) |
| Resolution | 0.002”/ft or 40-second (0.18 mm/m or 0.01°) | 0.0002”/ft or 5-second (0.020 mm/m or 0.001°) | 0.002 in/ft. or 40-second 0.01° (0.2 mm/m) | 0.0002 in/ft. or 5-second 0.001° (0.02 mm/m) | 1 arcsec. (≤ 5μm/m) | 0.2 arcsec. (≤ 1μm/m) |
| Accuracy | ±0.004”/ft or 80-second (± 0.02°) from 0° to ±0.5° and 0.04° at other angles | ±0.0004”/ft or 10-second (± 0.002°) from 0° to ±0.5° ± 0.004° at other angles | ± 0.002”/ft or ± 0.01° (40-second) at 0° to ±10.00°, ± 0.03° at other angles | ± 0.0002”/ft or ± 0.001° (or 10-second ) at 0° to ±2.000°, ± 0.003° at other | ±1 arcsec at 0 to ±1080 arcsec.; ±3 arcsec at other angles | ±0.6 arcsec at 0 to ±100 arcsec.; ±1.2 arcsec at other angles |
| Connectivity | Bluetooth, 50 feet | Bluetooth, 50 feet | USB & Bluetooth, 150 feet, ON/OFF by User | USB & Bluetooth, 150 feet, ON/OFF by User | USB & Bluetooth, 150 feet, ON/OFF by User | USB & Bluetooth, 150 feet, ON/OFF by User |
| Vibrometer (Relative g – unit) | 1.0 | 2.0 | 2.0 | 2.0 | ||
| Software & Mobile App (Windows OS) (Android & iOS) | Mobile App ONLY | Mobile App ONLY | Yes | Yes | Yes | Yes |
| Dimension L x W x H (mm) | 149 x 51 x 40 | 149 x 51 x 40 | 188 x 62 x 37 | 188 x 62 x 37 | 188 x 62 x 37 | 188 x 62 x 37 |
| Nett Weight (Approx.) | 1.1 lbs (500 gram) | 1.1 lbs (500 gram) | 1.3 lbs (580 gram) | 2.4 lbs (1,100 gram) | 2.5 lbs (1,150 gram) | 2.5 lbs (1,150 gram) |
| User Self Calibration | Yes | Yes | Yes | Yes | Yes | Yes |
| Accredited Calibration Certification | NIST, JIS, DIN | NIST, JIS, DIN | NIST, JIS, DIN | NIST, JIS, DIN | NIST, JIS, DIN | NIST, JIS, DIN |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| PC SYNC DWL2000XY – PRO ver. | PC SYNC DWL3000XY – PRO ver. | PC SYNC DWL3500XY – PRO ver. | PC SYNC DWL8500XY – PRO ver. | PC SYNC DWL9000XY – PRO ver. | |
| 3D Surface Flatness Graph Meter | – | – | – | ✓ |
✓ |
| Single-Axis Angle Meter | ✓ |
All Version | All Version | ✓ |
✓ |
| Dual-Axis Angle Meter | ✓ |
Pro Version Only | Pro Version Only | ✓ |
✓ |
| Smart 2D Bubble | ✓ |
All Version | All Version | ✓ |
✓ |
| Single-Axis Angle Graph | ✓ |
All Version | All Version | ✓ |
✓ |

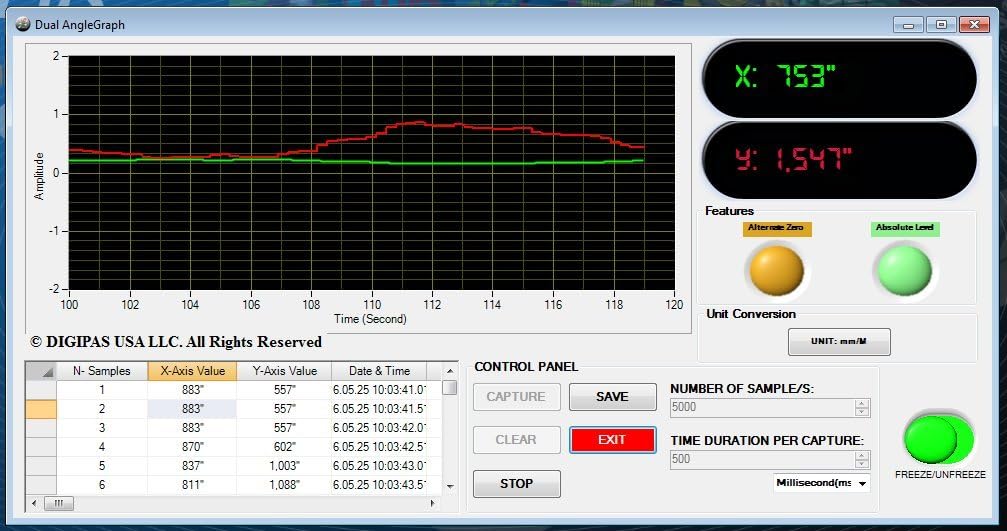

| Dual-Axis Angle Graph | – | Pro Version Only | Pro Version Only | ✓ |
✓ |
| VibroMeter Graph | – | Pro Version Only | Pro Version Only | ✓ |
✓ |
| Bluetooth Connection | – | Pro Version Only | Pro Version Only | ✓ |
✓ |
Product information |
||||||||||||||||||||||||||||||
|
| Weight | 2.54 lbs |
|---|
