-20%

dbx 231s Dual Channel 15-Band Equalizer

$487.15

Dual 15-band, 1/3-octave constant Q frequency bands
Switchable boost/cut ranges of 6 or 12 dB
Front panel bypass switch
12 dB input gain range
4-Segment LED ladders for monitoring output levels
Inputs: ¼” TRS and female XLR (pin 2 Hot)
Outputs: ¼” TRS and male XLR (pin 2 Hot)

Out of stock

buy on amazon

EAN: 1216080000000 SKU: DBX-DBX215SV Categories: 20% back on select brands, Equalizers & Feedback Controllers, Prime Card Bonus

Part of the Harman group of sound companies, dbx was founded in 1971 by David E. Blackmer with this goal: 'To get closer to the realism of a live performance'. Now dbx tape noise reduction systems are used in professional recording studios around the world.

dbx 215s Graphic EQ

Dual-Channel 15-Band Equalizer

When the pros need an EQ, they turn to dbx. The dbx 215s includes two 15-band channels of 2/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. From its extended frequency response and dynamic range, to the quality componentry and meticulous attention to detail, the 215s offers exceptional sound and rugged reliability that guarantees you will always sound your best.

Dual 15-band, 1/3-octave Constant Q frequency bands
Switchable boost/cut ranges of ±6 or ±12 dB
Front panel bypass switch
±12 dB input gain range
4-segment LED ladders for monitoring output levels

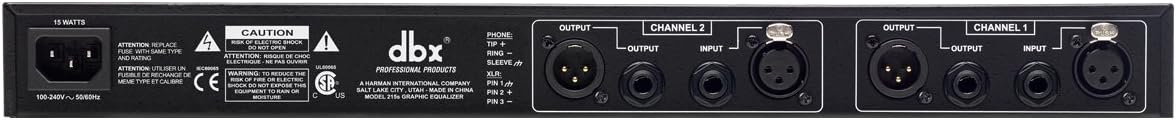

XLR and TRS Inputs and Outputs
Frequency Response of <10 Hz to >50kHz
Dynamic range of greater than 108dB

Who Uses This Product?


	dbx 131s	dbx 215s	dbx 231s
System Type	Single-Channel 31-Band Equalizer	Dual-Channel 15-Band Equalizer	Dual-Channel 31-Band Equalizer
Frequency Response	<10Hz to >50kHz, +0.5/-3dB	<10Hz to >50kHz, +0.5/-3dB	<10Hz to >50kHz, +0.5/-3dB
Dynamic Range	Typically >112dB	Typically >112dB	Typically >112dB
Input Connectors	1/4” TRS, female XLR (pin 2 hot)	1/4” TRS, female XLR (pin 2 hot)	1/4” TRS, female XLR (pin 2 hot)
Output Connectors	1/4” TRS, male XLR (pin 2 hot)	1/4” TRS, male XLR (pin 2 hot)	1/4” TRS, male XLR (pin 2 hot)
Max Output Level	>+21dBu balanced/unbalanced into 2kΩ or greater >+18dBm balanced/unbalanced (into 600Ω)	>+21dBu balanced/unbalanced into 2kΩ or greater >+18dBm balanced/unbalanced (into 600Ω)	>+21dBu balanced/unbalanced into 2kΩ or greater >+18dBm balanced/unbalanced (into 600Ω)
Power Consumption	15W	15W	15W
Dimensions	1.75” x 6” x 19” (4.4cm x 15.24cm x 48.26m)	1.75” x 6” x 19” (4.4cm x 15.24cm x 48.26m)	3.5” x 6” x 19” (8.9cm x 15.24cm x 48.26cm)
Weight	4.8 lbs.(2.2 kg)	4.8 lbs.(2.2 kg)	6.2 lbs.(2.81 kg)

Product information

Size	15-band	Style	Dual Channel
Model	215s	Warranty	This warranty is valid only for the original purchaser and only in the united states. 1. The warranty registration card that accompanies this product must be mailed within 30 days after purchase date to validate this warranty. You can also register online at www. Dbxpro. Com. Proof-of-purchase is considered to be the responsibility of the consumer. A copy of the original purchase receipt must be provided for any warranty service. 2. Dbx warrants this product, when bought and used solely within the u. S. , to be free from defects in materials and workmanship under normal use and service. 3. Dbx liability under this warranty is limited to repairing or, at our discretion, replacing defective materials that show evidence of defect, provided the product is returned to dbx with return authorization from the factory, where all parts and labor will be covered up to a period of two years. A return authorization number must first be obtained from dbx. The company shall not be liable for any consequential damage as a result of the product’s use in any circuit or assembly. 4. Dbx reserves the right to make changes in design or make additions to or improvements upon this product without incurring any obligation to install the same additions or improvements on products previously manufactured. 5. The foregoing is in lieu of all other warranties, expressed or implied, and dbx neither assumes nor authorizes any person to assume on its behalf any obligation or liability in connection with the sale of this product. In no event shall dbx or its dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to causes beyond their control.
PartNumber	DBX215SV	Designer	Dbx
Manufacturer	dbx	Brand	dbx
Size	15-band	ReleaseDate	2021-06-09T00:00:01Z
Item Weight	4.8 Pounds	ItemDimensions	19 x 6 x 1.75Inches
NumberOfItems	1	binding	Electronics
Amazon Category	Musical Instruments » Music Recording Equipment » Recording Signal Processors » Equalizers & Feedback Controllers	Amazon Category	Musical Instruments » Self Service » Special Features Stores » Prime Card Bonus
Amazon Category	Musical Instruments » Self Service » Special Features Stores » 20% back on select brands	EAN	7123123170498
EAN	1216084898313	EAN	0081175651211
EAN	0600599648982	EAN	0691991401220
EAN	1216080000000	UPC	691991401220
UPC	600599648982	UPC	081175651211

Weight	4.80 lbs
