ASUS Prime X370-Pro AMD Ryzen AM4 DDR4 DP HDMI M.2 USB 3.1 ATX X370 Motherboard with Aura Sync RGB Lighting
$342.43
- Powered by AMD Ryzen AM4, 7th generation Athlon and HD 2000 series processors to maximize connectivity and speed with NVMe M.2, front panel USB 3.1 and Gigabit LAN
- Two patent-pending Safe Slots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
- AURA Sync RGB lighting features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products
- Compatible with NVIDIA Titan X, GeForce GTX 1080 and GeForce GTX 1070 graphics cards, SLI HB bridge is your fast track to gaming greatness. With backward-compatible USB 3.1 Type-A and reversible USB 3.1 Type-C front-panel connectors
- Supports cpu up to 8 cores. Features 1 x m.2 socket 3, with m key, type 2242 or 2260 or 2280 storage devices support sata and pcie 3.0 x 2 model. Operating system is windows 10 64 bit
- 5-Way Optimization with auto-tuning and FanXpert 4 delivers advanced fan controls with an integrated AIO pump header for dynamic cooling

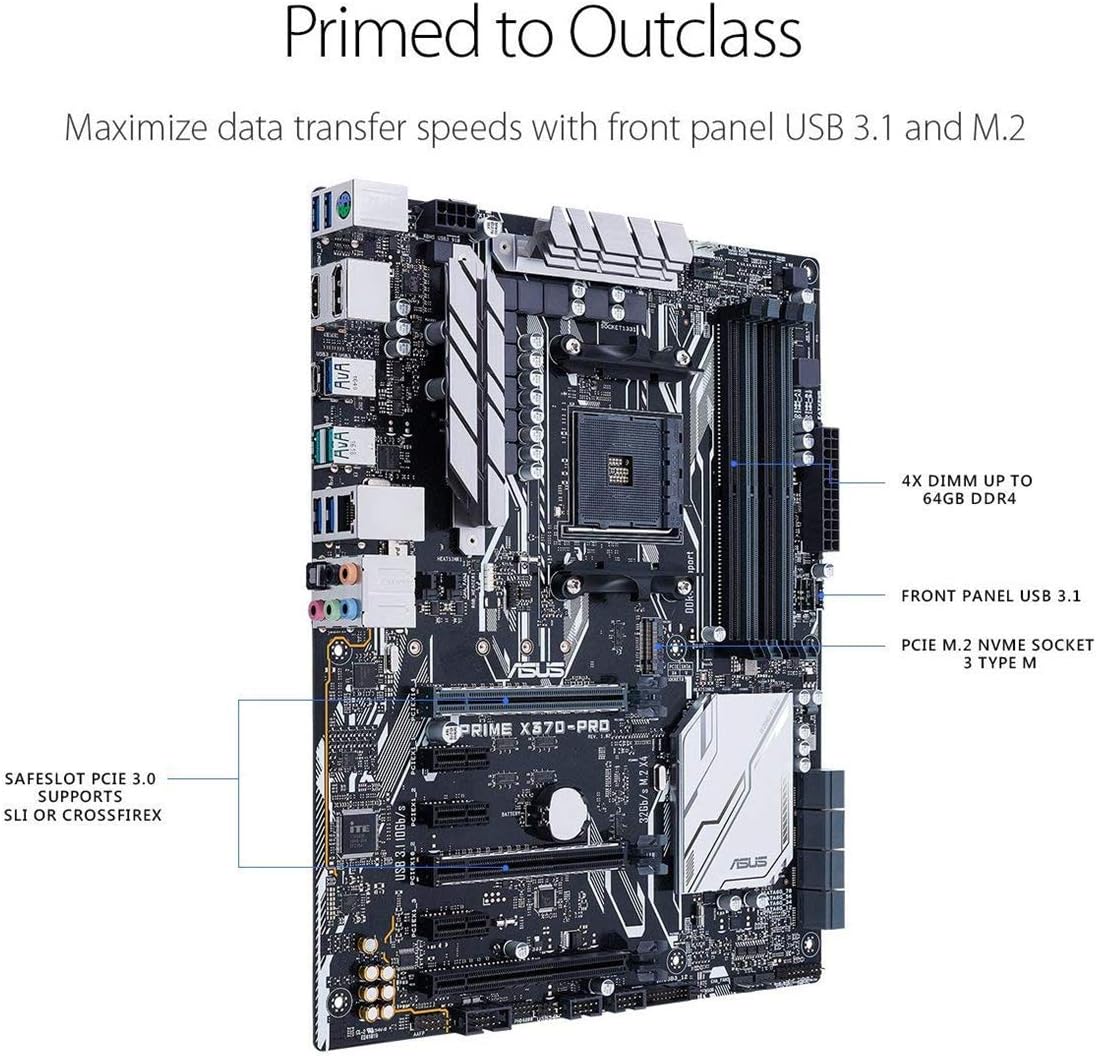

ASUS Prime X370-Pro
Powered by AMD Ryzen AM4 processors, the ASUS Prime X370 delivers customizable performance. 5-Way Optimization provides intelligent auto-tuning and dynamic fan calibration, dual SafeSlots support SLI or CrossfireX, while on-board M.2 and USB 3.1 deliver maximum transfer speeds. Outshine and personalize your build with AURA Sync RGB Lighting.
- Powered by AMD Ryzen AM4 and 7th generation Athlon processors
- 5-Way Optimization with auto-tuning and FanXpert 4
- Two patent-pending SafeSlots
- AURA Sync RGB lighting
- 8-channel HD audio
Brighten Up Your Build
ASUS Aura offers full RGB lighting control with a variety of functional presets for built-in RGB LEDs as well as LED strips connected to the onboard 4-pin RGB headers — all of which can be synced with an ever-growing portfolio of Aura Sync-capable ASUS hardware.
Features
|
|
|
|
|---|---|---|
One-Click Overclock and CoolingASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of your system based on real-time usage — so you get superb CPU performance, everyday energy savings, ultra-stable digital power, cool and quiet fans, and now networking and audio settings that are tailored to your apps. |
Connect with Unparalleled SpeedsWith x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gb/s data-transfer speeds. Lastly, with backward-compatible USB 3.1 Type-A and reversible USB 3.1 Type-C front-panel connectors, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps. |
ASUS SafeSlotSafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process to integrate the slot with fortifying metal support for an inherently stronger design, SafeSlot is then firmly anchored to the motherboard through additional solder points. |
Exclusive Audio Features
ASUS Prime X370-Pro utilizes a unique audio codec designed in close collaboration with Realtek. The Realtek S1220A features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality.
|
|
|
|
|
|---|---|---|---|---|
|
ROG Crosshair VI Hero |
ASUS Prime X370-PRO |
ASUS Prime B350-PLUS |
ASUS Prime B350M-A/CSM |
|
| CPU Socket | AMD AM4 | AMD AM4 | AMD AM4 | AMD AM4 |
| Chipset | AMD X370 | AMD X370 | AMD B350 | AMD B350 |
| Form Factor | ATX | ATX | ATX | mATX |
| Memory Slots | 4 x DIMM; Max. 64GB DDR4 | 4 x DIMM; Max. 64GB DDR4 | 4 x DIMM; Max. 64GB DDR4 | 4 x DIMM; Max. 64GB DDR4 |
| Maximum Frequency | 3200MHz (OC) | 3200MHz (OC) | 3200MHz (OC) | 3200MHz (OC) |
| Graphics Output | N/A | HDMI/DP | HDMI/DVI/RGB | HDMI/DVI/RGB |
| PCIe 3.0 x16 | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) | 1 x PCIe 3.0/2.0 x16 | 1 x PCIe 3.0/2.0 x16 |
| M.2 | 1 x 22110 (PCIe 3.0 x4 & SATA) | 1 x 22110 (PCIe 3.0 x4 & SATA) | 1 x 22110 (PCIe 3.0 x4 & SATA) | 1 x 22110 (PCIe 3.0 x4 & SATA) |
| USB 3.1 | 3 ports @ PCIe 3.0 x2: Front: x1 Type-C Rear: x2 Type-A | 3 ports @ PCIe 3.0 x2: Front: x1 Type-C Rear: x2 Type-A | 2 ports @ PCIe 3.0 x2: Rear: x2 Type-A | 2 ports @ PCIe 3.0 x2: Rear: x2 Type-A |
| ASUS Aura Sync RGB Lighting | Yes | Yes (with 1 AURA RGB Strip Header) | N/A | N/A |
Product information |
|||||||||||||||||||||||||||||||||||
|
| Weight | 2 lbs |
|---|
