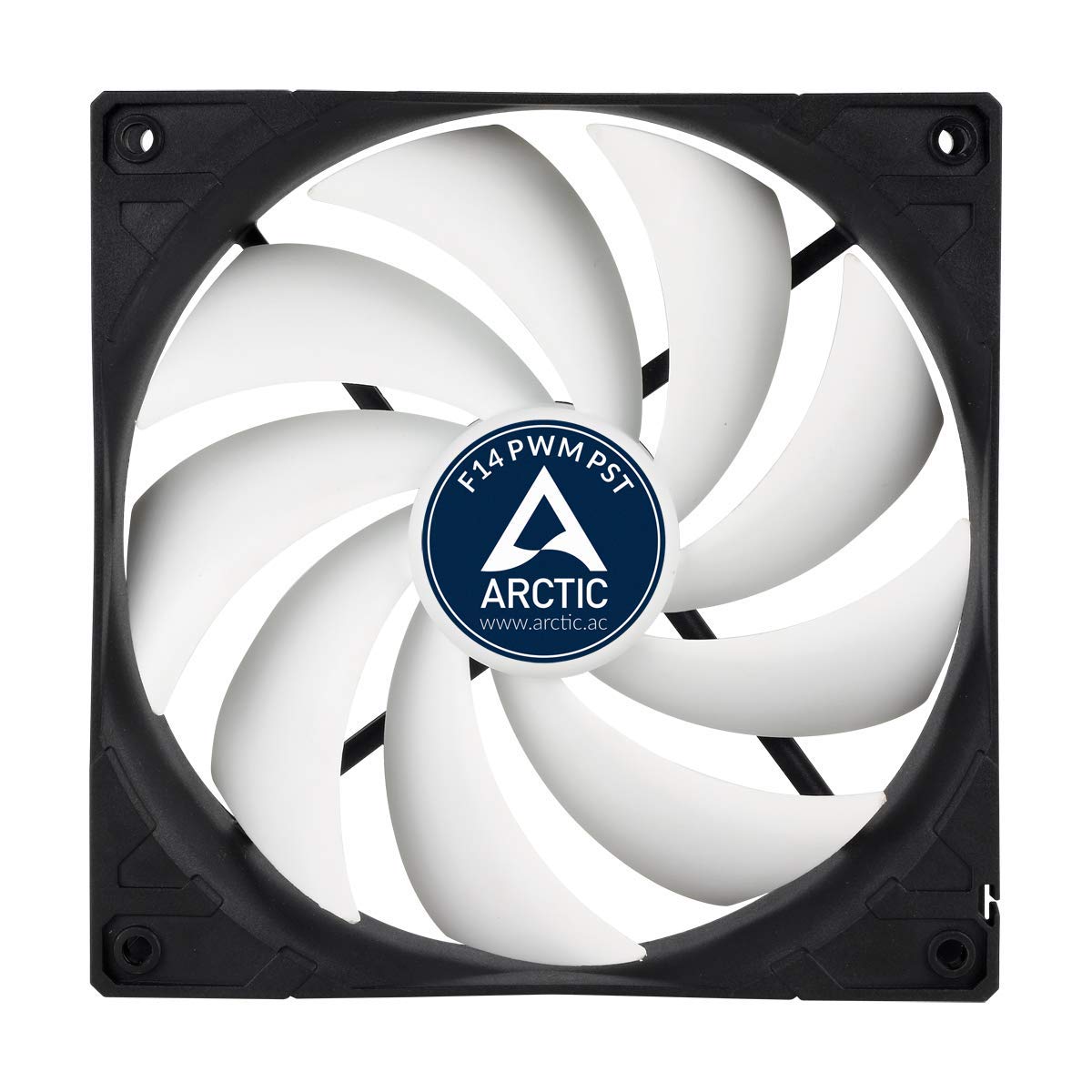

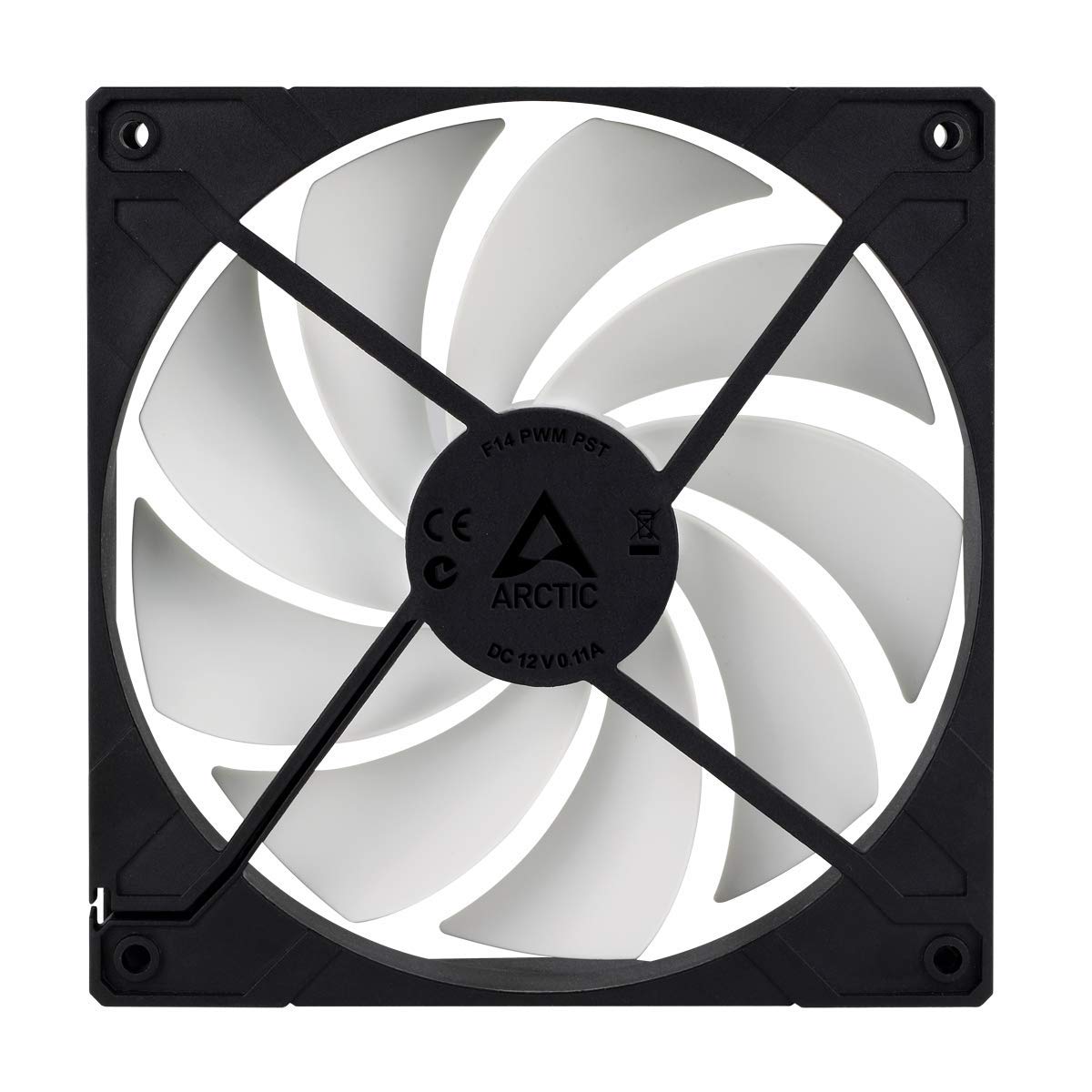

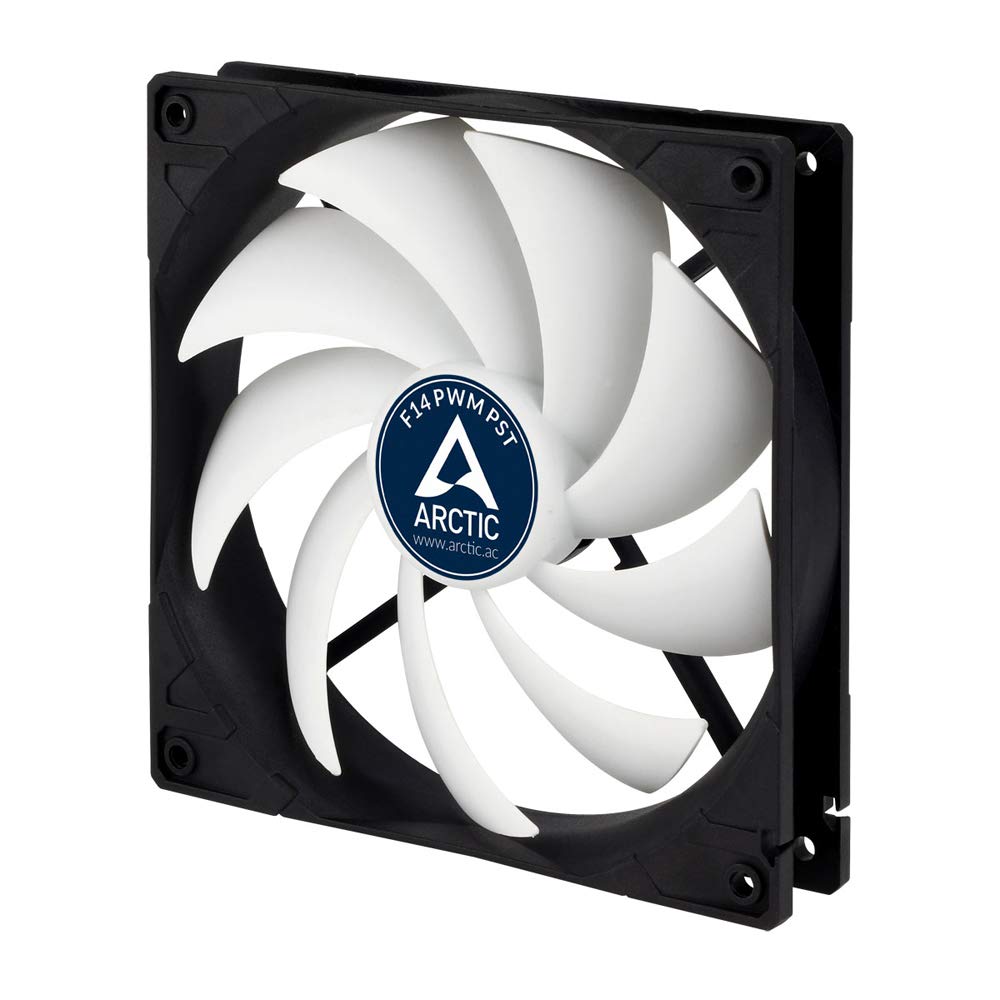

ARCTIC F14 PWM PST – 140 mm PWM PST Case Fan with PWM Sharing Technology (PST), Very quiet motor, Computer, Fan Speed: 200-1350 RPM – Black/white
$49.39
- INNOVATIVE DESIGN: Design of fan blades improves airflow and facilitates efficient ventilation, impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure
- PERFECT CASE FAN REGULATION WITH PWM: The PWM function allows the motherboard to run the fan precisely at its necessary speed, this guarantees the required cooling and minimizes the noise level
- PWM SHARING TECHNOLOGY (PST): PST assures that all of your fans listen to one control signal, e.g. you share the CPU Cooler’s PWM signal and assure that your case fans stand down at low load and spin up whenever necessary
- LONG SERVICE LIFE: The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage, thus this bearing is as quiet as a sleeve bearing but comes with a higher service life
- TECHNICAL DATA: Fan speed: 200–1350 RPM, Airflow: 74 CFM/126 m³/h (@ 1350 RPM), Noise Level: 0.3 Sone (@ 1350 RPM), Pin: 4-pin
Out of stock
buy on amazon
|
|
|
|
|
|---|---|---|---|
Long Service LifeThe Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life. |
Perfect Case Fan Regulation with PWMThe PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimises the noise level. |
PWM Sharing Technology (PST) Lowers NoiseIf you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary. |
Two Way InstallationBlow warm air out of the case, draw cool air into your case. |
General data
Performance
Fan Speed: 200-1350 RPM
Airflow: 74 CFM/126 m³/h
Static Pressure: 1.3 mm/H²O
Noise Level: 0.5 Sone
Operating Ambient Temperature: 0 – 40 °C
Fan
Fan Frame: Standard
Controll Type: PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Electric Characteristics
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/Voltage: 0.11 A/12 V
Cable Length: 400 mm
Size & Weight
- Length: 140 mm
- Width: 140 mm
- Height: 27 mm
- Weight: 181 g
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
|
BioniX F140 |
F14 PWM PST |
F14 Silent |
P14 PWM PST A-RGB |
P14 PWM PST |
BioniX P140 |
|
| Size | 140 x 140 x 28 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 27 mm | 140 x 140 x 28 mm |
| Fan Speed | 200–1800 RPM | 200–1350 RPM | 800 RPM | 0-1900 RPM | 200–1700 RPM | 200–1950 RPM |
| Airflow | 104 CFM/176 m³/h (@ 1800 RPM) | 74 CFM/126 m³/h (@ 1350 RPM) | 46 CFM/78 m³/h (@ 800 RPM) | 68.9 CFM/117.06 m³/h (@ 1900 RPM) | 72.8 CFM/123.76 m³/h (@ 1700 RPM) | 77.6 CFM/131.92 m³/h (@ 1950 RPM) |
| Noise Level | 0.6 Sone (@ 1800 RPM) | 0.5 Sone (@ 1350 RPM) | 0.08 Sone (@ 800 RPM) | 0.3 Sone (@ 1900 RPM) | 0.3 Sone (@ 1700 RPM) | 0.45 Sone (@ 1950 RPM) |
| Control Type | PWM PST | PWM PST | Fixed Speed | PWM PST | PWM PST | PWM PST |
| Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing | Fluid Dynamic Bearing |
| Weight | 184 g | 181 g | 180 g | 210 g | 194 g | 181 g |
| Static Pressure | 2.35 H2O (@ 1800 RPM) | 1.3 H2O (@ 1350 RPM) | 0.45 H2O (@ 800 RPM) | 2.0 mm H2O (@ 1900 RPM) | 2.4 H2O (@ 1700 RPM) | 2.85 H2O (@ 1950 RPM) |
Product information |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| Weight | 0.40 lbs |
|---|
